Escape 30 Solar Panel
Escape 30 Solar Panel

QUICK FEATURES

The Escape 30 Solar Briefcase features a sturdy body that easily folds into a sleek and portable briefcase, making transportation safe and easy.

Solar Power


Collect 30 watts of power from the sun to recharge your power pack


Easy to Use

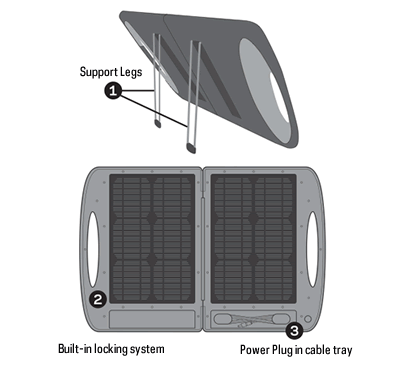

Pop-out leg stands for optimal positioning and convenient set-up.

For use anywhere

Ergonomic rubberized handle for greater comfort and grip. Store-away cable for simple organization.

WHAT CAN THE ESCAPE 30 SOLAR PANEL BRIEFCASE CHARGE?

The solar panel does not hold a charge it produces power when it is exposed to sunlight. You can store the power it produces in a portable recharger. The Escape 30 Briefcase can be used to power any Goal Zero recharger.

WHAT GOAL ZERO PRODUCTS WORK BEST WITH THE ESCAPE 30 BRIEFCASE?

The Escape 30 Briefcase can be used to power any Goal Zero recharger. For the amount of Watts it gives, it will be most effective with the Escape 150, Yeti 150*, Yeti 400*, or Sherpa 50*. (*4,7mm to 8.0mm adapter needed to connect to this product)

DOES THE ESCAPE 30 BRIEFCASE GIVE A FULL 30 WATTS?

It delivers up to 30 Watts of power, but the angle of the panels and the cloud coverage can impact its performance. Avoid the shade. It will not work indoors.

HOW DO I USE THE ESCAPE 30 BRIEFCASE?

1: Position and angle panel towards the sun

2: Plug the solar panel into recharger/battery pack (sold separately)


USAGE

Charges from the following: Approx. Charge Time:
Escape 150 Power Pack 11-22 hours
Yeti 150 Solar Generator 11-22 hours
Yeti 400 Solar Generator 26-52 hours
INPUTS
Rated wattage 30W
Cell Type Mono crystalline
Open-circuit Voltage 18-20V
Converting Eff. 17-18%
OUTPUTS
Solar Port 12V Charging port (4.7 mm)
14-16V, 2.0A max (30W), not regulated
GENERAL
Weight 12.2 lbs (5.4 kg)
Dimensions 16 x 22 x 1.75 in (53.3 x 5 x 40.6 cm)
Warranty 12 Months
Certifications FCC and CE
Optimal Operating Temp. 32-104 F (0-40 C)
