Nomad 13 Solar Panel
Nomad 13 Solar Panel

QUICK FEATURES

The Nomad 13 delivers an ultra-compact yet powerful solar panel that enables you to charge your handheld devices

directly from its USB and 12 Volt DC charging ports.

Stay Charged


Use the power of the sun to keep your GPS or smartphone charged

Easy to Use


Use solar power with USB or 12V devices

Portable & Powerful


Collect 13 Watts of power from the sun. Foldable, rugged design, and weather resistant.

WHAT CAN THE NOMAD 13 SOLAR PANEL CHARGE?

The Nomad 13 will directly charge most USB and 12V devices. Most handheld USB devices, include: Cell phone, smart phone, GPS, MP3 player

WHAT GOAL ZERO PRODUCTS WORK BEST WITH THE NOMAD 13?

Goal Zero Switch 8 Recharger, Guide 10 Plus, Sherpa 50 Recharger, Rock Out Portable Speaker

CAN I USE THE USB AND 12V PORTS TO CHARGE DEVICES SIMULTANEOUSLY?

Yes. The Nomad 13 will split the incoming solar power between the two ports to charge devices simultaneously. Some

devices may not be compatible.



HOW DO I USE THE NOMAD 13?

1: Open and remove protective file from solar cells (film may already have been removed)

2: Position and angle panel towards the sun

3: Plug your device into one of the charging ports




USAGE

Charges from the following: Approx. Charge Time:
Guide 10 Plus 3-5 hours
Goal Zero Yeti 150 26-52 hours
Sherpa 50 v2 8-16 hours
12V devices (satellite phone, GPS) 1-4 hours
USB devices (cell phone, MP3 player) 1-4 hours
SOLAR PANEL
Rated wattage 13W
Cell Type Mono crystalline
Open-circuit Voltage 20-22V

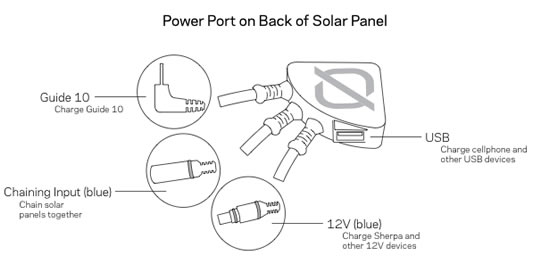

PORTS
USB port 5V, up to 1A (5W max) regulated
Solar port (blue, 8mm) 14-22V, up to 0.9A (13W max)
Mini solar port (2.5mm) 6.5V, up to 1.1A (7W max) regulated
GENERAL
Weight 1.6 lbs (0.72 kg)
Dimensions 10.5 x 9 x 1 in (26.7 x 23 x 2.5 cm)
Warranty 12 Months
Certifications FCC, CE, ROHS
Optimal Operating Temp. 32-104 F (0-40 C)
