      Fishfinder 350 Plus

Fishfinder 350 Plus


Find fish, Catch fish, Affordable price

  • Made for INDIA with India local languages support.

  • Available in bigger and clearer 6-inch WVGA color, portrait mode display. Offers a keyed interface with dedicated buttons.

  • Built-in 300 W (RMS) sonar power output and extra-sensitive Garmin HD-ID™ target tracking technology. Flexibility to support 50/77/200 kHz for shallow or deep water usage.

  • Comes with built-in ClearVü scanning sonar. This high-frequency sonar gives a clearer picture of what’s below the boat by producing a photographic image with detailed representation of objects, structure and fish.

  • Night color display modes is easy read while during dimming light condition to increase the navigating safety.

  • Rugged, outdoor look complements your lifestyle. New connector and knobs of bail mount design. Able to withstand the harsh marine environment with excellent performance.

The all-new FF 350 Plus fish finder new product is available in bigger and clearer 6-inch portrait WVGA display. FF 350 Plus is offered with Asian multi language supports and developed the target for semi-commercial fishing market. Garmin FF 350 Plus is an all new design with reasonable price tag fish finder. FF 350 Plus gives you built-in Garmin traditional sonar and ClearVü scanning capability which shows crisp fish arches with clear target separation.

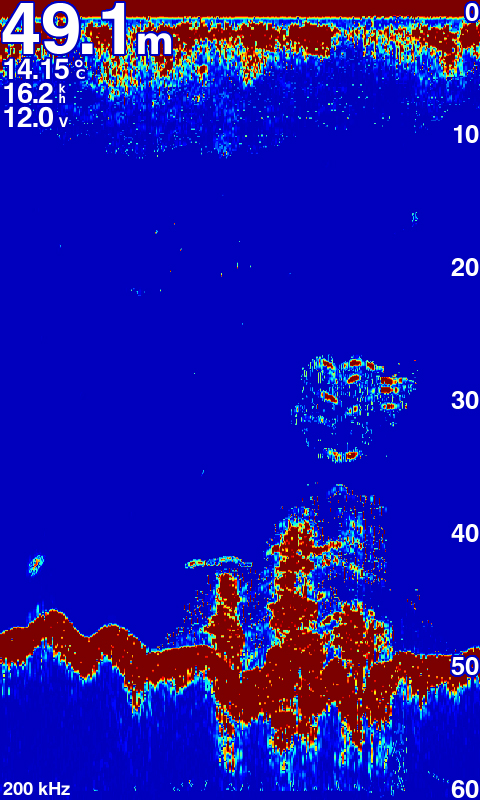

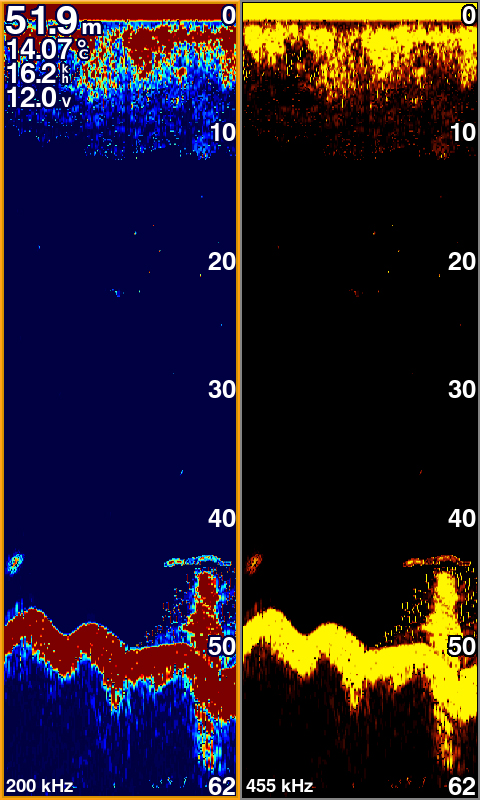

Clearest Scanning Sonar on the Water

Garmin ClearVü scanning sonar gives you a nearly photographic image down below your boat. Traditional Garmin HD-ID™ sonar and ClearVü scanning sonar are combined into 1 transducer.

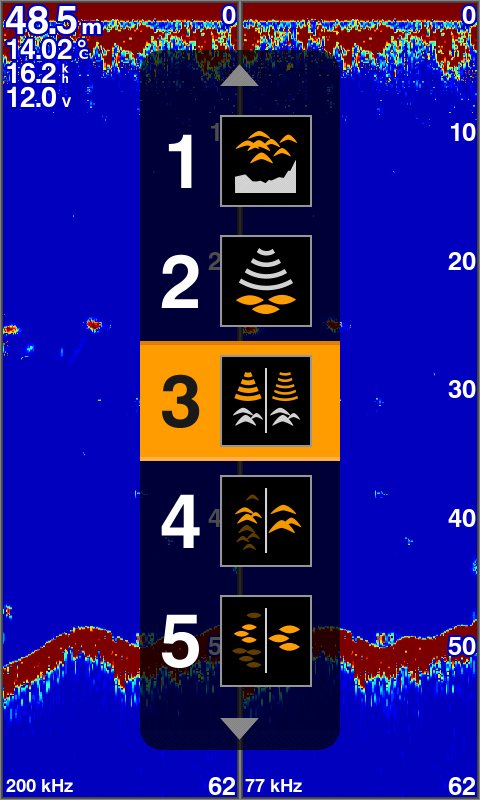

Quick PAGE Sequence

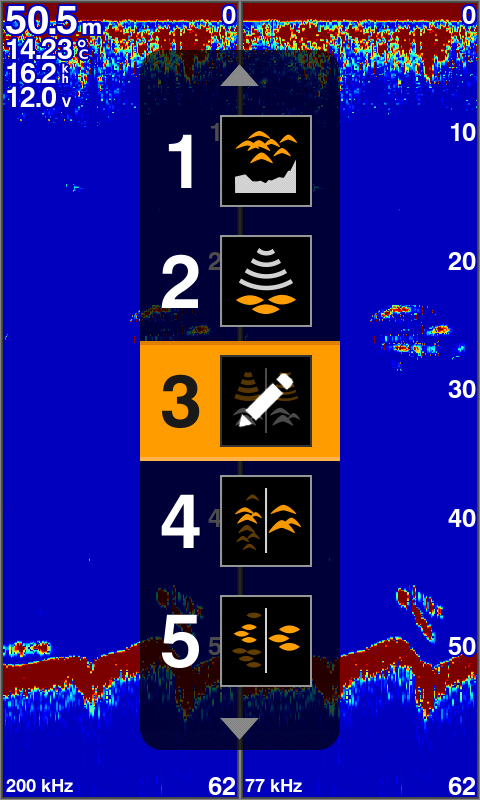

Dedicated PAGE button to have a quick function switch. Press the “PAGE” button to let user can switch from frequently use feature one by one quickly. With holding the "PAGE" button user can edit their prefer 5 frequently use pages theirsleves.

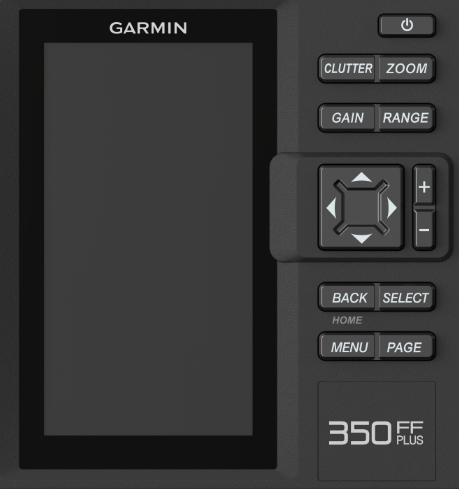

Dedicated button for most common used function

Benefit for the professional fishermen like you, FF 350 Plus features with dedicated button on its right side for you to quickly adjust the setting you need for “Gain”, “Range”, Clutter and “Zoom” function.

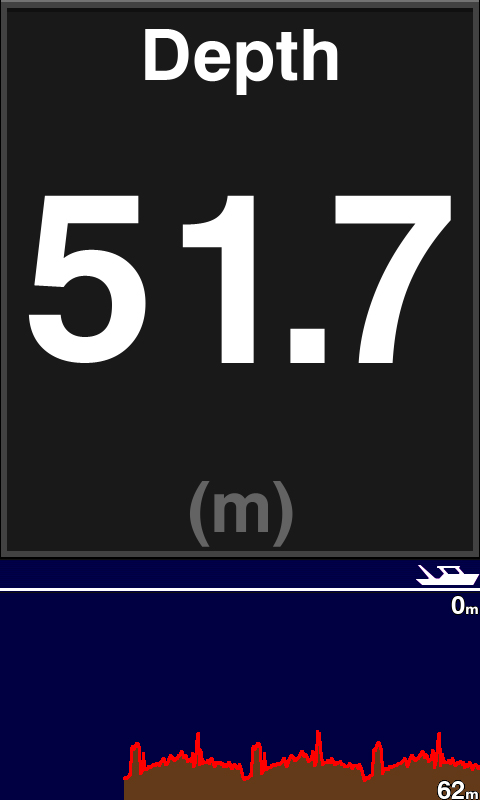

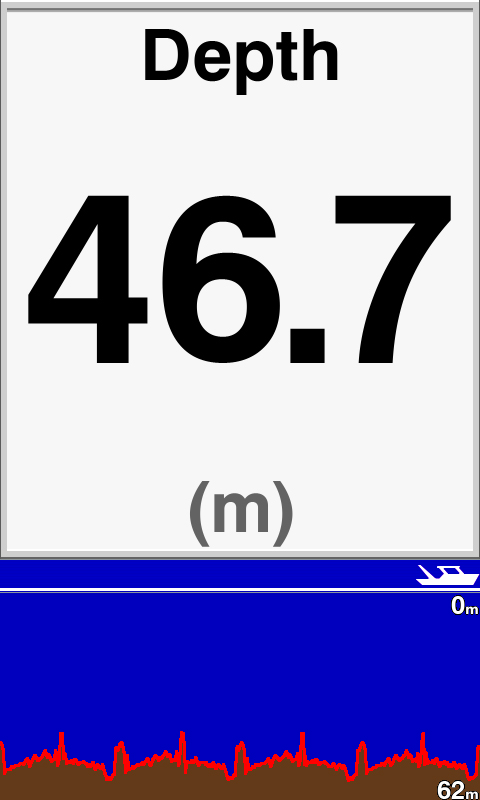

Depth Data Graph

Provides instant value and history logs graph to understand submarine topograpgy and shows you the history of depth data graph at a glance

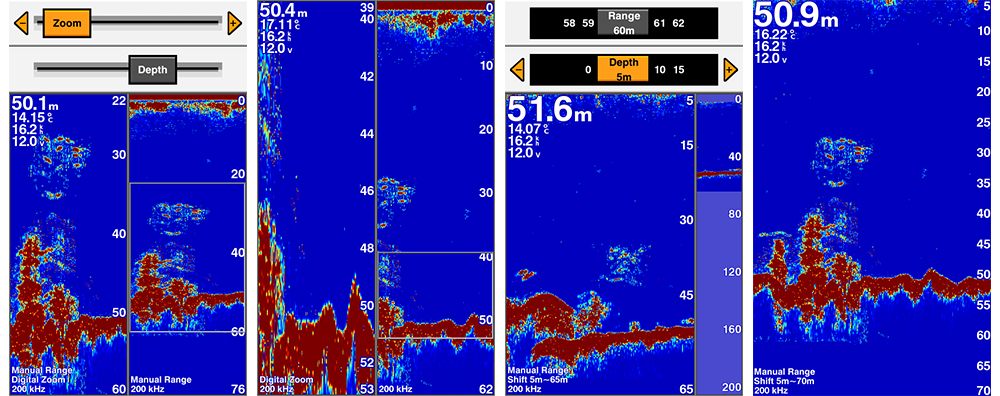

Digital Zoom and Shift Zoom Supporting

Digital Zoom and Shift Zoom features let you control your owned display portion as what you prefer to shows in detailed.

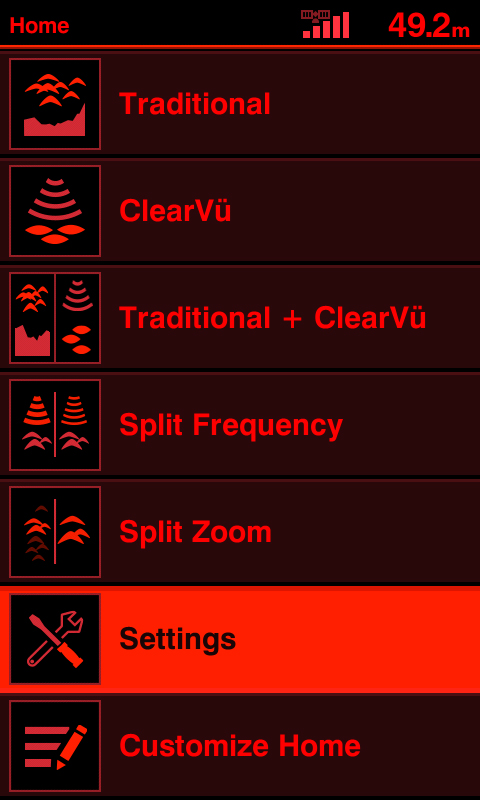

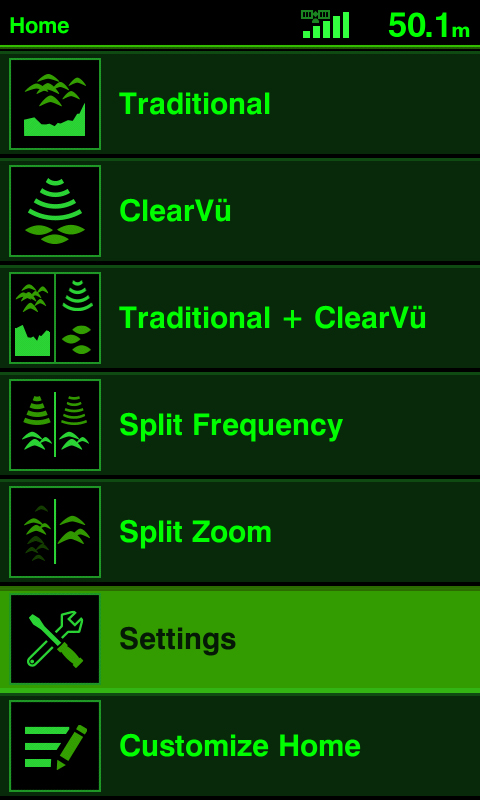

Night Color Display Mode

Night Color Display mode let you configure your prefer display color no matter during day time or night time.







Cross Products Camparision
  FF 350 Plus
FF 650 Plus GPSMAP 585 Plus
Display size 6” color, portrait 6” color, portrait 6” color, portrait
Display resolution 480 x 800
480 x 800 480 x 800
GPS/GLONASS/BeiDou   - -
GPS antenna built-in
- -
External GPS antenna support   - -
Sonar output power(RMS) 300W
600W 600W
Sonar Frequency 50/77/200kHz 50/77/200kHz CHIRP (Low, Mid, High) 50/77/200kHz CHIRP (Low, Mid, High)
ClearVü -
- -
Scanning sonar frequency 260/455/800kHz CHIRP 260/455/800kHz CHIRP 260/455/800kHz
Chart support
  • (All Garmin Chart/KMZ custom map)
Quickdraw™ Contours     -
Waypoint/Route/Track/Active Track
(12000/200/0 /1) (12000/200/0 /1)
IPX7 Waterproof - - -
NMEA 0183/RS422
- -
SD Card     (2 standard SD)
Multi-language support -
- -





Physical Performance
Physical dimensions 176.0 mm x 190.0 mm x 66.0 mm (6.93” x 7.48” x 2.60”)
Display size, WxH 2.83" x 5.36"; 6.0" diagonal (72.0 mm x 136.2 mm; 152.4 mm diagonal)
Display resolution, WxH: 480 x 800 pixels
Display type: WVGA display
Weight: 696.0 g (1.53 lbs)
Water rating IPX7
Power consumption 6.4 W
Mounting options Bail or flush

Sonar Features & Specifications
Transmit power 300W (RMS)
Voltage range 10V - 36V DC input
Sonar Frequency

50/77/200kHz

ClearVü™ (built-in)
Scanning Sonar Frequency 260/455/800kHz
Maximum depth 1,750 ft freshwater, 830 ft saltwater (depth capacity is dependent on water bottom type and other water conditions)
Garmin Sonar compatible yes
Bottom lock (shows return from the bottom up) yes
Water temperature log and graph yes
Split-screen zoom yes

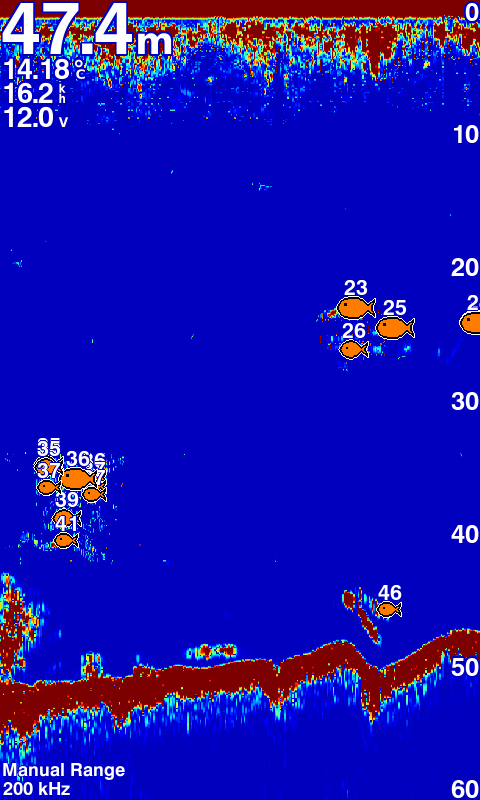

Fish Symbol ID (helps identify fish targets) yes
Sonar history rewind yes


What's in the Box:

  • FF 350 Plus

  • Power/data cable

  • Bail Mount

  • DB transducer

  • Hardware

  • Documentation
