Electric Spirit - CA200 |
| |
|
|
|
|
Features: |
| |
|
| |
|

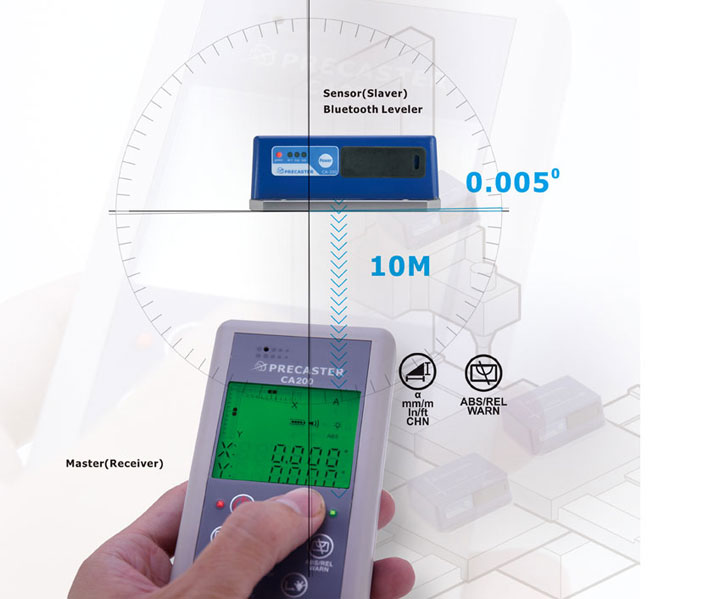

CA200 has installed a complete function included conversion between mm different per-meter, inch different per-feet,
Display in three different digitals, switch between X and Y axis, Duplicate degree to another object and all combined
in a simple receive with high accuracy (0.005°) and wireless operation.
|

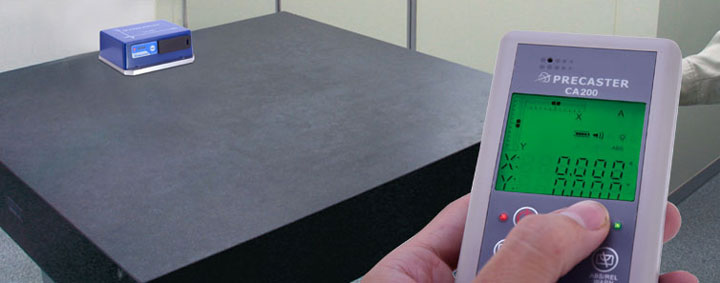

Do not say it is troublesome anymore.CA200 has a highly accuracy (0.0050) with G-sensor technology embedded,
it provide a better reliability than mechaincal and CA200 is easy to maintain by your self, just with a 180 degree turning, you could maintain your CA200 as an expert. |
|
 |

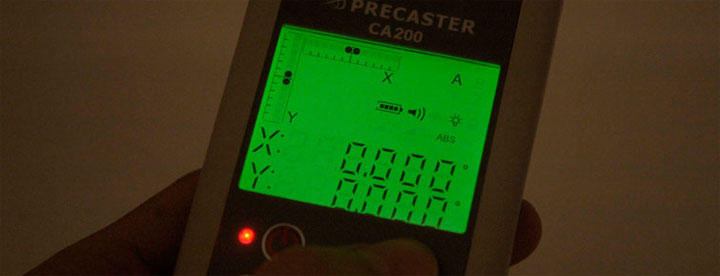

CA200 has multiple display selection for you, you could choose whatever you need. With digital, graphical interface design, you could read results clear and easily. |
|
 |
CA200 is the first electric level with wireless design which could help you to measure without any dragging. With blue tooth 2.0 supported CA200 could be operated in 10 meter far.Needing a level with no wired? Try CA200 you will know this is what you really need |
|
 |

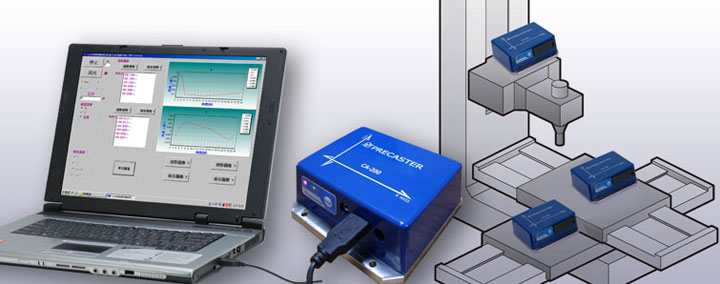

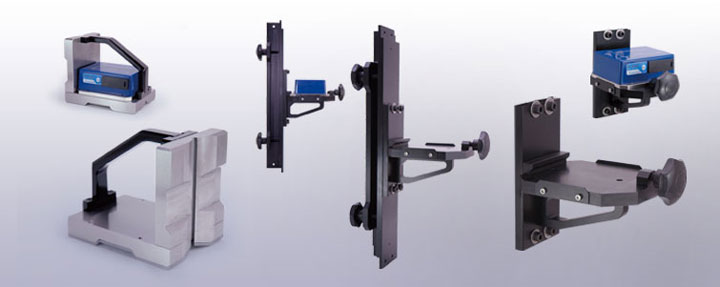

CA200 has two accessories (optional), One is handheld mount for machine install.The other is bracket for H steel installation and monitor.We believe when you work with them you will be surprised by the how efficient you've never thought. |
|
 |
|
| Specs: |
| Specification: |
| Model NO. |
CA200 |
| Measuring Range* |
-10° ~ +10° |
| Axis |
X axis, Y axis |
| Resolution |
0.002°, 0.01°, 0.1°, 1° |
| Accuracy* |
< 0.01° (±3°) , < 0.04° (±10°) |
| Temperature Drifting |
< 1'' /°C (0°), < 1.5'' /°C (±3°) |
| Response Time |
< 2S |
| Operation Temperature |
-10°C ~ +50°C |
| Storage Temperature |
-20°C ~ +60°C |
| Weight |
< 300g (including AA battery * 3) |
| Dimension |
70*24*134mm (Receiver) |
| Power Supply |
Master (Receiver): AA Battery * 3
Slave (Sensor): DC 5V or AA Battery * 3 |
| Range for Bluetooth |
10m |
| Battery Life |
Receiver > 8h, Sensor > 8h |
| Safety Instructions |
RoHS Compliance, EU Instruction 91/338/EEC
EU Instruction 94/62/EC, WEEE for EU/EG/EE
Chinese RoHS. EMC for Receiver and Sensor
CE / EMI: EN61000-6-3/2007,
EN55022/2006 Group1 Class B
EMS: EN61000-6-2/2005,
IEC61000-4-2/2001 (static electricity)
IEC61000-4-3/2006 (Radiation of electromagnetism)
IEC61000-4-4/2004 (Burst)
IEC61000-4-6/2006 (Conducted Immunity)
IEC61000-4-8/2001 (Magnetic field) ,
FCC Part15-C Class A /2007 |
|
|
|
|
| |
|
| |
