Nomad 7 Solar Panel |
|
|
The Nomad 7 delivers an ultra-compact yet powerful solar panel that enables you to charge your handheld devices directly from its USB and 12 Volt DC charging ports.
As fast as the wall
Solar charge your cell phone in 1-2 hours.
Easy to Use
Use solar power with USB or 12V devices
Portable & Powerful
Collect 7 Watts of power from the sun. Foldable, rugged design, and weather resistant
WHAT CAN THE NOMAD 7 SOLAR PANEL CHARGE?
The Nomad 7 will directly charge most USB and 12V devices (not tablets). Most handheld USB devices, include: Cell phone, smart phone, GPS, MP3 player |
WHAT GOAL ZERO PRODUCTS WORK BEST WITH THE NOMAD 7?
Goal Zero Switch 8 Recharger, Guide 10 Plus, and Rock Out Portable Speaker |
CAN I USE THE USB AND 12V PORTS TO CHARGE DEVICES SIMULTANEOUSLY?
Yes. The Nomad 7 will split the incoming solar power between the two ports to charge devices simultaneously. Some devices may not be compatible. |
|

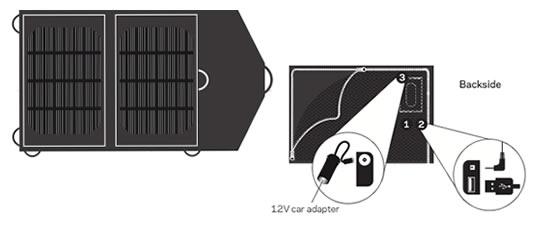

HOW DO I USE THE NOMAD 7?
1: Open and remove protective file from solar cells (film may already have been removed)
2: Position and angle panel towards the sun
3: Plug your device into one of the charging port
USAGE
| Charges from the following: |
Approx. Charge Time: |
| Switch 8 Recharger |
3-6 hours |
| Guide 10 Plus |
3-6 hours |
| Cell phone, MP3 player |
1-3 hours |
| Smart phone, GPS, USB camera |
2-4 hours |
| Not compatible with tablets, like iPad |
| SOLAR PANEL |
| Rated wattage |
7W |
| Cell Type |
Mono crystalline |
| Open-circuit Voltage |
8-9V |
| PORTS |
| USB port |
5V, up to 1A (5W max), regulated |
| Solar port (blue, 8mm) |
15V, up to 0.3A (5W max), regulated |
| Mini solar port (2.5mm) |
6.5V, up to 1.1A (7W max) |
| GENERAL |
| Weight |
0.8 lbs (0.36 kg) |
| Dimensions (unfolded) |
9 x 1.5 x 17 in (22.9 x 3.8 x 43.2 cm) |
| Dimensions (folded) |
9 x 1.5 x 6.5 in (22.9 x 3.8 x 16.5 cm) |
| Warranty |
12 Months |
| Certifications |
FCC, CE, ROHS |
| Optimal Operating Temp. |
32-104 F (0-40 C) |
|
|
| |
|
| |
