| HDR Video Sensor |
| High performane HDR video sensor, capture Time Lapse video in any light! |
|
|
| Instant Video |
| TLC200 Pro captures and converts thousands of photos into a Time Lapse video. |
|
| |
| 4.2 µm pixel size |
| Awesome low light recording and sharper images. |
|
|

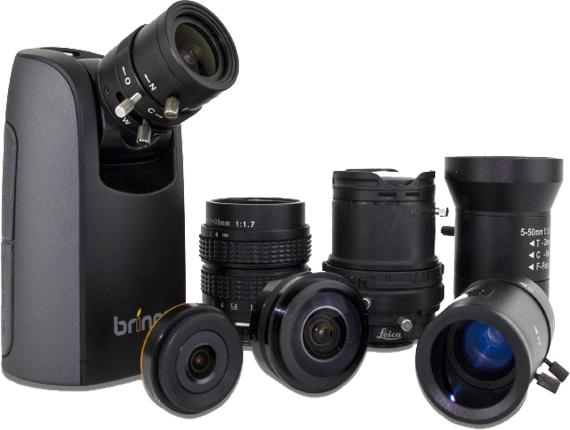

| Interchangeable Lens |
| Don't like the kit lens? Fine, chose the lens you want. |
|
| |
| f2.0 Aspherical lens |
| Sharper, brighter images with this aspherical glass lens. |
|
|
| Super Wide Angle |
112˚Field of View.
A wider area to be recorded creating panoramic images! |
|
|
| Scene |
Daylight |
| Time interval |
Frames captured |
Days |
| ASAP |
168000 |
1 |
| 1 sec |
200000 |
2.3 |
| 2 sec |
244000 |
5.6 |
| 5 sec |
204000 |
11.5 |
| 10 sec |
145000 |
17.0 |
| 20 sec |
108000 |
25.0 |
| 30 sec |
84500 |
29.0 |
| 1 min |
51000 |
35.0 |
| 5 min |
12300 |
42.0 |
| 10 min |
6300 |
43.0 |
| 1 Hr |
1070 |
44.0 |
| 4 Hr |
269 |
44.0 |
| 24 Hr |
45 |
45.0 |
|
| |
| Scene |
Twilight |
| Time interval |
Frames captured |
Days |
| 2 sec |
67400 |
1.6 |
| 5 sec |
55500 |
3.2 |
| 10 sec |
51300 |
5.9 |
| 20 sec |
51000 |
11.5 |
| 30 sec |
45000 |
15.0 |
| 1 min |
33700 |
23.0 |
| 5 min |
10900 |
38.0 |
| 10 min |
5900 |
41.0 |
| 1 Hr |
1060 |
44.0 |
| 4 Hr |
269 |
44.0 |
| 24 Hr |
45 |
45.0 |
|
| |
| Scene |
Night |
| Time interval |
Frames captured |
Days |
| 5 sec |
39000 |
2.3 |
| 10 sec |
30000 |
3.5 |
| 20 sec |
28100 |
6.5 |
| 30 sec |
26200 |
9.0 |
| 1 min |
21800 |
15.0 |
| 5 min |
9300 |
32.0 |
| 10 min |
5400 |
37.0 |
| 1 Hr |
1040 |
43.0 |
| 4 Hr |
268 |
44.0 |
| 24 Hr |
44 |
44.0 |
|
| |
| Scene |
Moon |
| Time interval |
Frames captured |
Days |
| 7 sec |
18300 |
1.5 |
| 10 sec |
18800 |
2.2 |
| 20 sec |
16000 |
3.5 |
| 30 sec |
15500 |
5.0 |
| 1 min |
13800 |
9.0 |
| 5 min |
7400 |
25.0 |
| 10 min |
4700 |
32.0 |
| 1 Hr |
1000 |
42.0 |
| 4 Hr |
266 |
44.0 |
| 24 Hr |
44 |
44.0 |
|
| Camera |
| Model |
TLC 200 Pro |
| LCD Screen |
1.44" TFT LCD |
| Rotate Lens |
120° |
| Waterproof |
Optional, (In use with Weather Resistant Housing (ATH110)) |
| Capture Mode |
| Time Lapse |
Auto generate Time Lapse video |
| Stop Motion |
Optional, (In use with Shutter Line (ATS100)) |
| Motion Activated |
Optional, (In use with Motion Sensor (ATM100)) |
| Image Sensor |
| Type |
1/3" HDR sensor |
| Dynamic Range |
115db |
| Resolution |
1.3 Mega pixel |
| Pixel size |
4.2um |
| Sensitivity |
3650mV/lux-sec (Ultra good low light quality) |
| Optics Lens |
| Aperture |
F2.0 |
| Lens type |
Aspherical Lens (glass lens) |
| Field of View |
112° |
| Focal Length |
19 mm (35mm equivalent) |
| Focus Distance |
Manual focus from 1 cm to ∞ (factory setting: 40 cm ) |
| Shooting Setting |
| Scene |
Daylight, Twilight, Night, Moon, Star |
| White Balance |
Auto, Day, Shade, Cloudy, Fluorescent Light (Cool), Fluorescent Light (Warm), Tungsten Light |
| Custom Image |
Exposure, Saturation, Contrast, Sharpness |
| Recording |
| Time Lapse Video |
Format: AVI
Resolution: 1280x 720 |
| Still Image |
Format: JPEG (only for using Shutter Line)
Resolution: 1280x 720, 640x 480 |
| Memory Storage |
SD Card (Supported up to 32 GB) |
| Time Interval |
| ASAP |
Captures 3~ 5 photos in 1 second |
| Custom |
From 1 second to 24 hours |
| Power |
| Power source |
Battery: 4 AA Batteries
DC IN: 5V (Micro USB connector) |
| Battery Life |
2 second time interval, captures 240,000 frames |
| Camera Body Dimensions |
| Size (DxWxH) |
64x 52x 107 mm |
| Weight |
140 g (without batteries) |
| Color |
Black |
What's in the Box:
- HDR TimeLapse Camera (TLC200 Pro)
- 4GB SD Card*
- Lens Cover
- Screwdriver
- Screw
- User Manual
SD card may or may not be included, please read the package contents listing.
|
|
| |
