14 Months Battery Life Time Lapse Surveillance Camera
The Brinno MAC200DN is a battery powered portable security camera, triggered by
Motion Detection (PIR) or a Fixed Capture Rate (Time Lapse) or Brinno’s new Hybrid
Mode ® (Time Lapse +Motion Detection).
Hybrid Activated
<320 ft time lapse capture zone and <20+ ft motion activated zone = Never Miss a Shot
Fast Playback Video
Automatically converts images into time lapse videos. The MAC200DN lets you review 8 hours of activity in a 1 minute time lapse video!
14 months battery life
2 D cell batteries can last for up to 14 months, so you can put away your power cords!

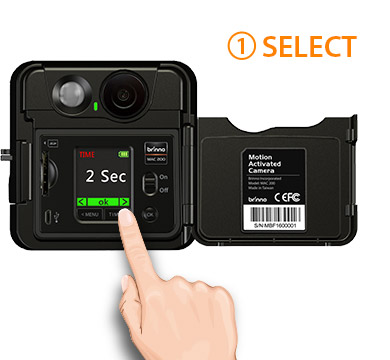

Outdoor Security 1,2,3!
Easy to set up outdoor security camera in 3 steps!
Dual Protection® Capture Mode
Time Lapse Capturing + Motion Activated
Capture any movement with either Motion Activation or a preset Time Lapse setting.
The MAC200DN automatically converts photos into an easy to view/review
Time Lapse Video. You can review an entire days activity in a couple of minutes!

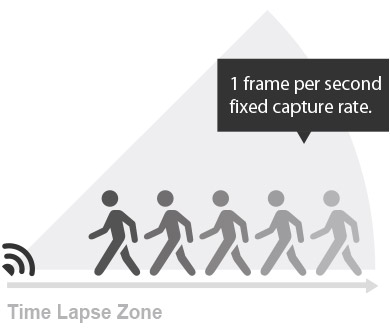

Time Lapse Mode
In Time Lapse Mode, you can record at a distance of up to 320 feet using a 1 frame per second fixed capture rate.

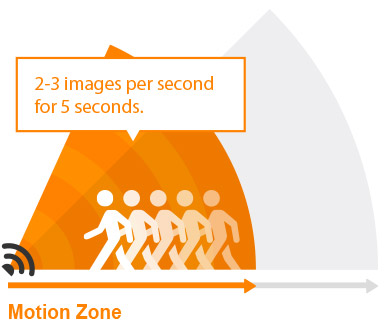

Motion Mode
In Motion Mode, when the PIR motion sensor is triggered by any movement in a 20 feet zone, the camera captures 2-3 images per second for 5 seconds

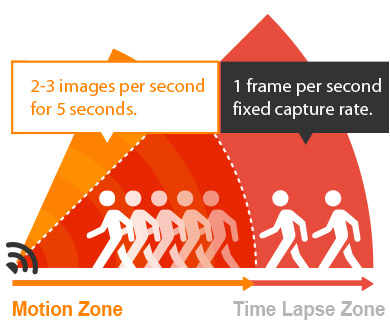

Hybrid Mode
Hybrid Mode consists of time lapse + motion detection, the camera switches from 1 frame per second Time Lapse Mode to Motion Mode (2-3 images per second for 5 seconds) when a moving object enters the 20 feet motion zone.
Application
The Brinno MAC200DN is a battery powered security camera, waterproof, durable, standalone , so it’s safe for indoor and outdoor use. Turn it on, let it record every movement.
PRODUCT FEATURES
100% DIY, 100% Portable
Forget the power cord, Ethernet line or DVR system! The MAC200DN is your 100% DIY, 100% wire-free, 100% portable security camera you can use anywhere, anytime.
Dual Protection
Brinno’s new Hybrid Mode ®
Preset time settings to take photos (Fixed capture rate)+ Motion Activation for video capture, provides unprecedented dual protection.
10x Outlook Range
Images captured at a Fixed Capture Rate, in the Time Lapse mode, cover a range over 100 meters deep.
14 Months Battery Life
The MAC200DN has unequaled battery life lasting up to 14 months on 2 D Cell batteries.
< 1 Sec. Rapid Wake Up
Brinno’s MAC200DN has excellent power saving technology, by providing super long lasting standby time, combined with the ability to rapidly wake up! So you’ll never miss a shot!
Fast Playback Video
Brinno’s MAC200DN captures and converts thousands of photos into a Time Lapse video. Review all your visitors with the push of a button.
100% DIY, 100% Portable
Battery powered = Wire-free
Not a complicated DVR security system, no complicated power cord wiring to set up. 100% DIY. 100% Wire-free. 100% Portable.
Smart Night Vision
Set your latitude, the camera will automatically turn on Night Vision at sunset and turn off Night Vision at sunrise. So the camera can capture infrared images* at night and capture regular images in daylight.
** infrared illuminator (APL200) is optional
Fast Playback Time Lapse Video
Check monthly activity in several minutes video
Brinno’s MAC200DN - Motion Activated Camera provides a whole new FAST/EASY PLAYBACK concept for you to EASILY review videos, as it automatically converts thousands of images into time lapse videos. This makes reviewing your videos easy and quick!
Water-proof, Outdoor Security Camera
Weather resistant, safe for outdoor use
We know most construction site are outdoors; in order to let you capture your entire construction project in any weather, we provide a weather resistant housing to protect your construction camera.
Brinno ships the exact product shown in the picture, however, colors and photos shown may vary from actual product colors due to computer monitor display settings. Therefore you see here may be different then the actual product shipped.
Camera
Model
MAC200DN
MAC200
LCD Screen
1.44" TFT LCD
Waterproof
IPX4
Capture Mode
Motion Activated
PIR motion detection (captured 2~3 frames per second)
Time Lapse
Fixed Capture Rate (captured 1 frame per time interval)
Hybrid
Combine Time lapse and Motion activated mode
Motion Sensor
Detect Distance
6 m
Detect Angle
100°
Night Vision option
ON
(Always turn Night Vision on)
ON
(Always turn Night Vision on)
OFF
(Always turn Night Vision off)
AUTO
(the camera will auto turn Night Vision on at sunset, turn Night Vision off at sunrise )
Image Sensor
Type
1/4" CMOS sensor
Resolution
1.3 Mega pixel
Pixel size
2.8 um
Sensitivity
2500 mV/lux-sec (Good low light quality)
Optics Lens
Aperture
f2.0
Field of View
75°
Focal Length
28 mm (35mm equivalent)
Focus Distance
60 cm(Minimum)
Recording
Video
Fast Playback Time Lapse Video
Format
AVI
Resolution
720P( 1280x 720)
Memory Storage
SD Card (Supported up to 32 GB)
Power
Power source
2x D cell Batteries
Battery Life
14 months*
External Power
DC IN: 5V
Camera Body Dimension
Size (DxWxH)
106x 110x 78 mm
Weight
250 g (without batteries)
Color
Black
Operating Temperature
-4°F to 122°F
-20°C to 50°C
NOTE: Batteries last 14 months usage under time lapse mode. (time interval setting: 5 minutes.)
Brinno ships the exact product shown in the picture, however, colors and photos shown may vary from actual product colors due to computer monitor display settings. Therefore what you see here may be different then the actual product shipped.
MAC200DN Package Contents
Motion Activated Camera (MAC200DN)
Wall Mount
Rubber Strap
Tree Strap
User Manual
Types of Home Security Camera Comparison
feature
Security Service Provider
IP Cam
DIY IP Cam (DropCam)
Trail Cam / Hunting Cam
Brinno MAC 200
Do It Yourself
Installation
Prof Installers
DIY
Both
100% DIY
Wire Free
Power plug & Cable bundles and labor required
extra battery bank
2 D Cells Battery powered
DVR Storage
need expensive NAS for large files
Not required (SD card)
Not required (SD card)
Local Storage
Optional
SD Card
SD Card
Maintenance Cost
Yearly Contract
No Cost
No Cost
No Cost
Video
Video Capture Format
18G ( 8 Hrs) , Hi Cost & M/T labor to convert to time lapse video
4G ( 8 Hrs @1sec Capture interval)
Video Stream
DVR required
DVR
Ext storage
no charge
no charge, thin files size
Video Clips(Video stream saved file)
DVR is a must
DVR is a must
no charge
no charge
very small size. <25% ordinary file size
Video Processing
Yes
Post Free & Instant time lapse video
Vidoe Quality
poor quality from video compression
no video compression, good quality
Night Shots
poor quality from short time exposure
good quality by long exposure
Detection & Trigger
Trigger mode
PIR sensor + Human
PIR sensors or Image comparison
IR sensor + Constant Shooting (Long Lasting Time lapse)
Detection distance
depends
PIR detection limits_Short distance(~30M) and False triggers
