Strengthen Home Security to PROTECT Your Loved Ones

You want your family safe and property secure whether you are home or away. Let Brinno be your VIGILANT GUARDIAN watching over anyone approaching near the front door so you have a peace of mind. Replace old-time peephole with modern clear widescreen camera that is wire-free, easy to install & long lasting in battery power. The hidden peephole camera secretly auto records images of all visitors when motion is detected. Keep a close eye on what matters most to you with Brinno SHC1000.

Features

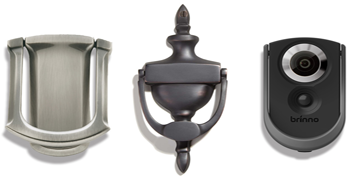

Door Knocker Mode

Insert motion sensor unit into our customized door knocker casing included in the package.

Portable Mode

Hide motion sensor unit anywhere separately near your front door.

Upfront Face Images

Capture best image angle of visitors from upfront, not sideways. Never ever second guess who is outside at your door.

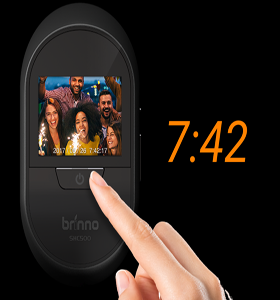

Digital Visitor Log

Capture your visitors and review their images with an easy push of a button

Double Detection

Bundled motion detector and built-in knocking sensor to double insure auto-detection of every activity at doorstep.

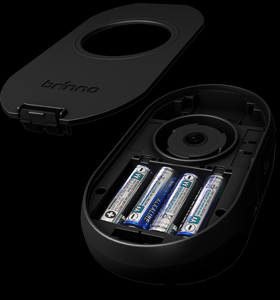

Long Lasting Power

Run by 4 AA batteries, the camera works up to 1,800 triggers or 6 month long.

Specification
PeepHole Camera
Model	SHC1000 12	SHC1000 14
Peephole Barrel	15/32” (12 mm)	5/9” (14 mm)
Doors Thick	1-1/8” to 2-1/4” (28-58mm)	1-3/4” to 3-1/8” (43-80mm)
View angle	90°	90°
Peephole Type	Optical grade lens peephole

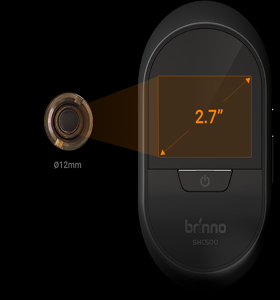

LCD Screen	2.7” TFT
Storage	Micro SD card (supports up to 32 GB, 8GB Class 10 recommended)
File Format	JPEG
Power Source	4* AA batteries (included)
Size (WxHxD)	3.4”x6.2”x1.3” (87 x 158 x 34 mm)
Weight	6 oz (170 g) (without batteries)
Built-in Sensor	Knocking sensor

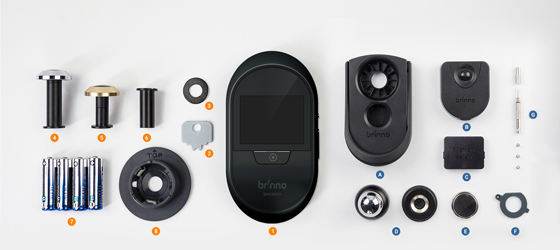

Contents	Peephole camera SHC1000; Peephole; Base flange; Tightening tool; 4 AA batteries; User manual.

Motion Detector
Model	MAS200
Detection Angle	90° (horizontal)
Detection Distance	Centerline: 13 ft (4 m) Side: 5 ft (1.5 m)
Transmission Distance to Receiver	32 ft (10 m)
Power Source	1 CR2450 battery (included)
Battery Life	Approx. 28,000 triggers
Splash-proof	IPX4
Operating Temperature	32 °F ∼ 113 °F (0 °C ∼ 45 °C)
Compatible Model	SHC1000, SHC1000W
Size (WxHxD)	Door knocker casing: 2.4" x 4” x 1.1” ( 60 x 100 x 28 mm) Motion sensor unit: 1.7" x 2” x 0.5” ( 44 x 52 x 14 mm) Receiver unit: 1.5" x 1.1” x 0.2” ( 37 x 29 x 6 mm)
Weight	Door knocker casing: 1.3 oz ( 36 g) Motion Sensor Unit: 0.7 oz ( 21 g) (without batteries) Receiver Unit: 0.2 oz ( 5.5 g)
Package Contents	Door knocker casing; Motion sensor unit (inside knocker casing); Receiver unit; Magnetic wall mount; Battery lock; Screwdriver; 1 CR2450 battery.
