Brinno Construction Trio Bundle Pack
BCC2000 The Professional Construction Camera
CAMERA FIRMWARE UPDATE
Please upgrade the camera firmware to lastest version to ensure the maximum performance of camera.
We have bundled our bestselling BCC2000 with the Camera Extender Kit (AFB1000), as a result, creating our easiest and most efficient time lapse solution yet. Engineered to withstand the unpredictable construction environment, the Extender Kit’s 32ft (10m) long cable provides instant access to your camera through your laptop or tablet (Windows 64-bit OS).
BCC2000 vs. BCC2000+
BCC2000 | BCC2000Plus | |
|---|---|---|
Brinno Command Center (Windows 64-bit OS) | X | ✓ |
Ladderfree Access to Camera | X | ✓ |
Simultaneous Record & Download | X | ✓ |
Camera Extender Kit (AFB1000) | X | ✓ |
Time Lapse Camera (TLC2000) | X | ✓ |
Power Housing (ATH2000) | X | ✓ |
Industrial-grade Clamp (ACC1000) | X | ✓ |
Bring Long Time Jobsite
Monitoring to the Next Level
The Construction Trio Bundle Pack (BCC2000) gives all the components you need to shoot truly professional-quality outdoor project video.
The Brinno EMPOWER time lapse camera delivers superior Full HD HDR images; the extended Power Housing further strengthens the long lasting outdoor photographing functionality. The versatile Clamp Mount Kit enables any shooting angle of your choice in open space.
Offering the ultimate blend of flexibility and performance, the Pack makes months or yearlong hassle-free jobsite monitoring a genuine reality.
*ATH2000 battery slot only supports Alkaline batteries. Lithium batteries, Ni-MH batteries, and Zinc-Carbon batteries will affect camera battery duration therefore DO NOT recommend them
Features
Flexible Schedule Setup
Interchangeable Lens
Long Lasting Battery Life
Adjustable Clamp Mount
Weather Resistant IPX5
HDR & FHD Time Lapse Video
HDR & FHD Imaging Technologies
Powerful HDR & FHD sensors greatly improve images of high contrast scenes for quality works, outdoors or indoors, daytime or night. No more fear to backlight and low light environment.
Flexible Schedule Setup
Set video shooting schedule to meet the demands of your project. The camera reliably captures and auto-edits frames into documentation video for EZ jobsite monitoring.
Weather Resistant IPX5
Add waterproof protection against adverse weather condition and assure the success of your jobsite video documentation.
Interchangeable Lenses
CS-mount interface to work with Brinno BCS zoom in lenses, producing amazing time lapse video with quality unseen details.

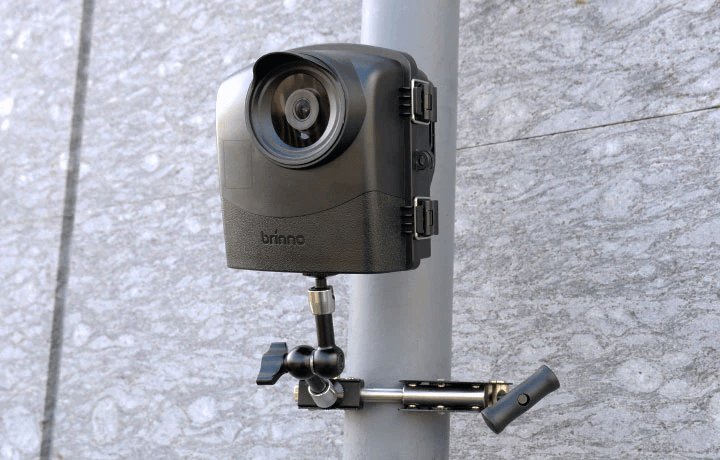

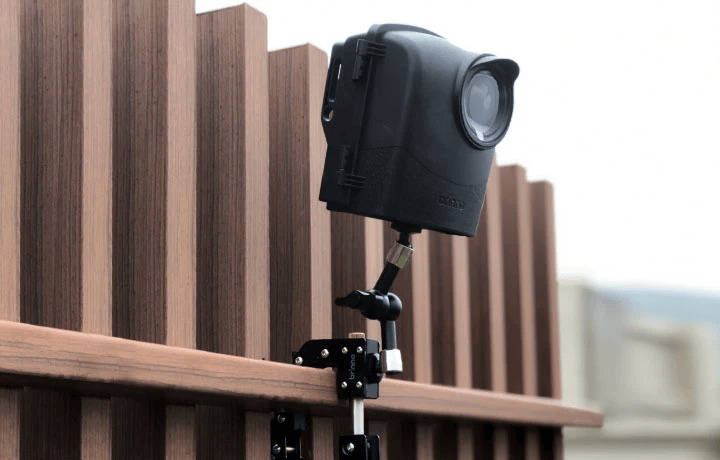

Adjustable Clamp Mount

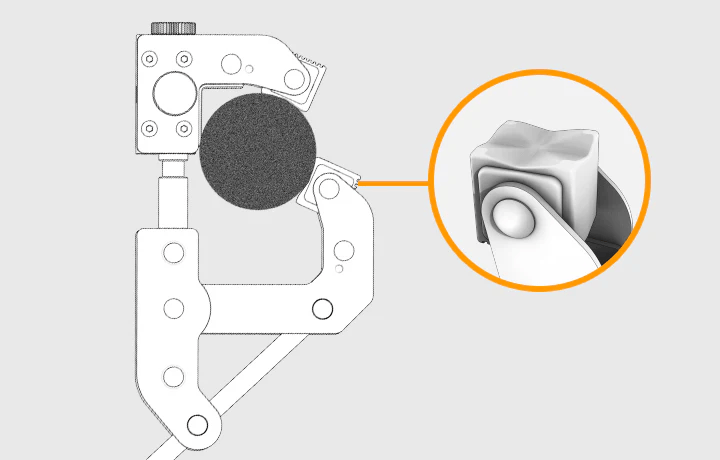

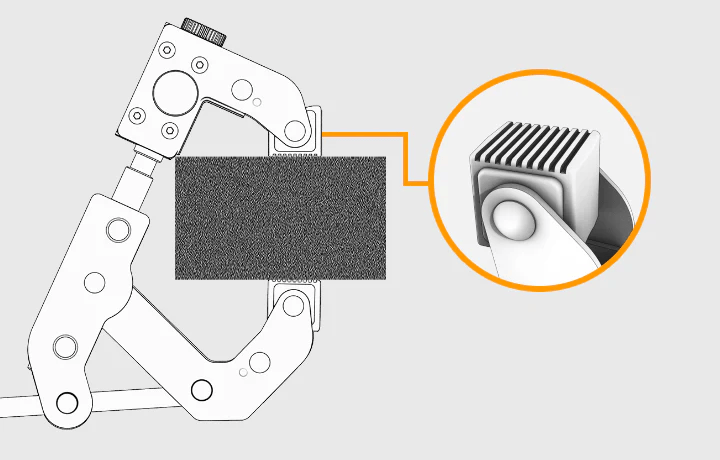

STRONG, DURABLE and FLEXIBLE, the EZ to use and adjustable clamp opens from a minimum of 0.04 in (1mm) to a max of 3.5 in (90mm). It can grasp and hold on to any available object tightly and steadily at construction sites

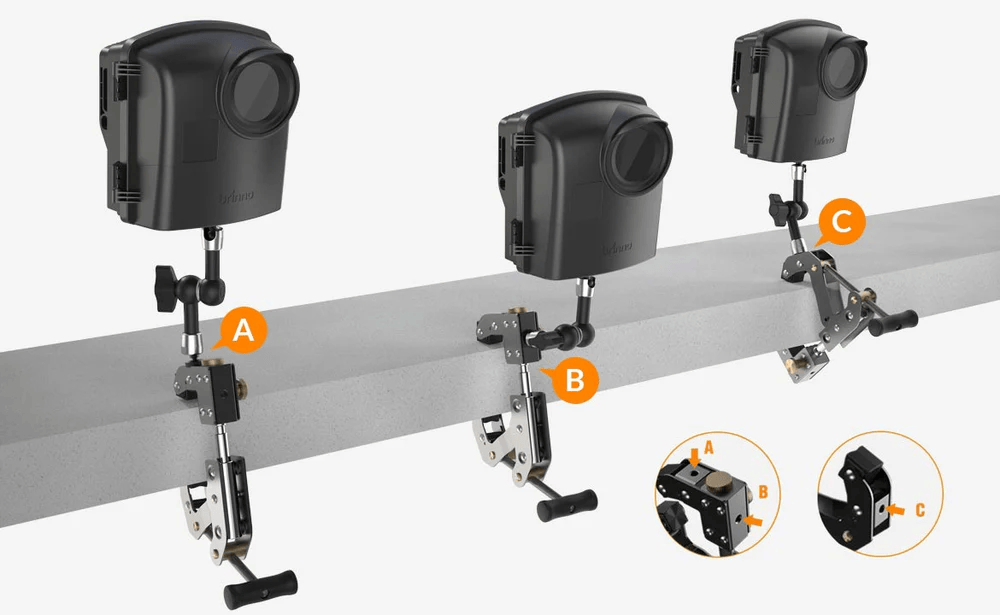

The camera arm has a 360 degree rotating tripod (¼“) ball joint with 90° tilt for easily positioning the direction of the camera.

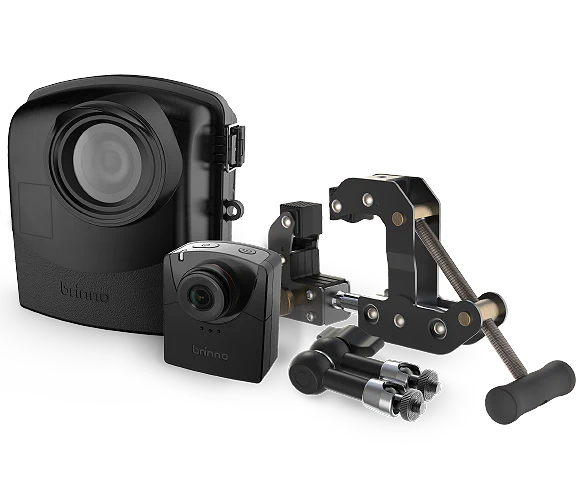

In The Box
Clamp Mount Kit
Time Lapse Camera
Construction Power Housing
Model NO. | ACC1000 |
|---|---|
Contents | Camera Clamp; Magic Arm |
Camera Mount Screw | ¼” |
Clamping Range | Tube: 0.4- 3.5 in (10 – 90 mm) Flat surface: 0.04- 3.5 in (1 -90 mm) |
Magic Arm Load Capacity | 6.6 lb (3 KG) |
Clamp Load Capacity | 110 lb (50 KG) (without extension pole) |
Size (LxWxH) | Folded: 8.2x 3.7x 1.5 in (209x 94x 39 mm)
Extended: 6.9x 7.1x 2.4 in (176x 180x 60 mm) |
Weight | 26.5 oz (750 g) (included magic arm) |
Materials | Clamp: Stainless, aluminum
Magic Arm: Stainless, metal, aluminum |
Model NO. | TLC2000 |
|---|---|
Resolution | 1080P |
Aperture | F2.0 |
Focal Length | 2.8 mm (Actual) 19 mm (35mm equivalent) |
Field of View | 118° |
Capture Mode | Time Lapse, Step Video, Stop Motion, Still Photo |
LCD Screen | 2″ TFT LCD |
Storage | microSD/ microSDHC/ microSDXC
(up to 128 GB, recommend a minimum of Class 10)*1 |
Power Source | 2 AA Batteries
DC IN 5V 1A (USB-C connector) |
Operating Temperature | 32°F ∼ 113°F(0°C ∼ 45°C) |
Size (WxHxD) | 2.4x 2.8x 1.7 in (60x 70.6x 42.4 mm) |
Weight | 3.0 oz(87.5 g) (without battery) |
Model NO. | ATH2000 |
|---|---|
IP-Rating | IPX5 (weather resistant) |
Compatible Cameras | TLC200, TLC200Pro, TLC120, TLC130, TLC2000, TLC2020(Use with included battery cover adapter) |
Battery Slot | Room for up to 16 add’l AA batteries Micro USB connecter (output 5V 2A |
Exchangeable Lens Covers | Kit lens cover Extension lens cover (for Brinno BCS lens) |
Size | 6.6 x 6.1 x 4.5 in (167x156x115.5 mm) |
Weight | 14 oz (393 g) |
In the Box | Construction power housing; Camera mounting adapter; Battery slot; Extension lens cover; Desiccant; Screwdriver; USB-C Adapter; Strap*2 |
Note | Not applicable to BCS 18-55 lens if using ASP-1000P solar power kit. |
