Brinno Solar Power Kit
ASP1000-P
Extend your long-lasting camera to immortal
The Brinno Solar Power Kit is specifically designed for the Brinno BCC2000 & BCC2000 Plus construction camera bundles. It includes a 10W monocrystalline silicon solar panel with higher conversion efficiency and the Brinno Rechargeable Battery kit. It generates a continuous power supply for the time-lapse camera through direct sunlight.
Rechargeable Battery Pack
Power your camera with limitless energy from the battery kit. The rechargeable kit eliminates the hassle of switching batteries, and extending the lifespan of single charge to infinity.
10W Solar Panel
10W Solar Panel
Power your camera with limitless energy from the battery kit. The rechargeable kit eliminates the hassle of switching batteries, and extending the lifespan of single charge to infinity.

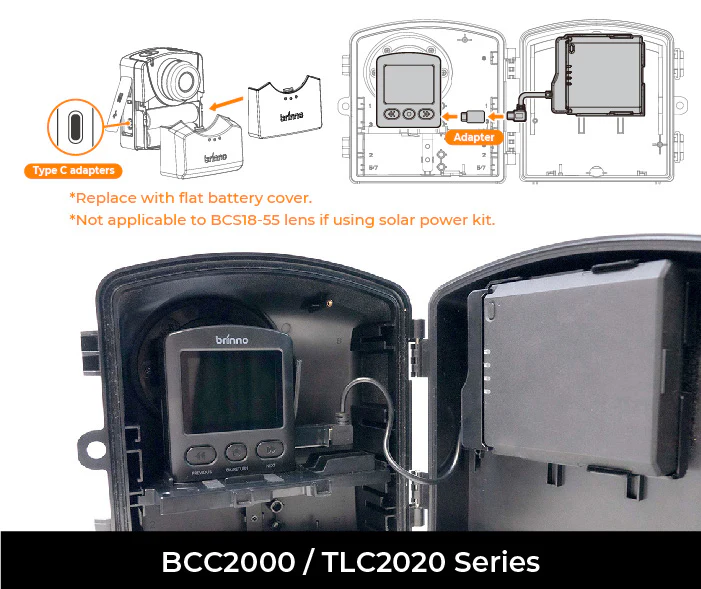

Compatible Models
BCC2000/BCC2000Plus
TLC2020 Series
*Requires ATH2000 Power housing and Replace with flat battery cover.
TLC120
*Requires ATH2000 Power housing
Always-on for Time Lapse Camera
Truly worry-free recording experiences with continuous power supply to make sure every moment was captured without missing a shot from the time lapse camera.
Unboxing Video
Specifications
Product / Model NO. | Solar Panel / ASP1000 | ||
|---|---|---|---|
Solar Power Rating | 10W | ||
Operating Voltage | 5V DC | ||
Power Connection | USB-C | ||
Conversion Rate | >20% | ||
Works With | Brinno Rechargeable Battery Kit (APB1000) | ||
Waterproof | IP65 | ||
Size (WxHxD) | Solar Panel: 8.4 x 10.3 x 0.8 in (214 x 262 x 20 mm) USB-C Cable: 9.8 ft (3 m) | ||
Weight | 23.2 oz (660 g) | ||
Product / Model NO. | Rechargeable Battery Kit / APB1000 | ||
|---|---|---|---|
Power Source | Brinno Battery Pack (MRB1000) | ||
Energy Capacity | 12,600 mAh/ 45.4 Wh | ||
Always-On Mode | Provides continuous power supply for low power time lapse camera or IoT application. | ||
Input Port | USB-C (support 5V 2A Quick Charge*) (on battery pack) | ||
Output Port | Micro USB connector (for Brinno camera) USB-C port | ||
Output Voltage
& Output Current | 5V 2A (max. for total two output) Micro USB: continuous output 5V 500mA (Max instantaneous output 5V 1A) USB-C: continuous output 5V 1A | ||
Compatible Models |
BCC2000 & BCC2000 Plus TLC2000/2020 with ATH2000 construction power housing | ||
Ambient temperature | -4 °F ∼ 140 °F (-20 °C ∼ 60 °C)** | ||
Size (WxHxD) | 3.68 x 3.22 x1.46 in (93.5 x 82 x 27.2 mm) | ||
Weight | 9.9 oz (280 g) | ||
Package Contents | Brinno Battery Pack (MRB1000) x1; External Power Adapter; Hook and Loop Tape | ||
