TETRAVIEW LCD DIGITAL MICROSCOPE
Discover our Solar System with the Celestron AstroMaster 130EQ! You’ll be ready to observe in minutes thanks to the quick and easy no-tool setup. The 130EQ provides bright, clear images of the Moon,

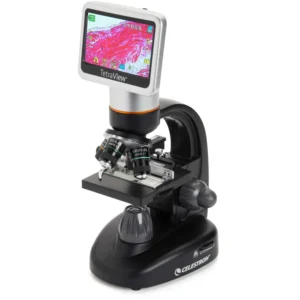

The professional-level Celestron TetraView LCD Digital Microscope is a touchscreen LCD microscope with advanced features at a reasonable price. TetraView features four fully achromatic lens objectives, a fully mechanical stage, a 4.3” TFT full color touch screen, 5MP CMOS sensor, and a 8GB SD card for storing your photos and videos. Taking high-resolution images and video of specimen slides has never been easier.
The LCD screen rotates 180° so you can easily share your viewing with others. For an even bigger audience, use the TV output to display on a television or projector. With magnification from 40 to 400x (1600x with digital zoom), TetraView is ideal for viewing a range of cellular specimens on slides.
Great for the discriminating professional or serious hobbyist, the TetraView microscope is an excellent tool for labs, schools, scientific research, and more
Watch Video
Specification
General | |
|---|---|
Type of Microscope: | LCD Desktop |
Head: | 180° rotatable head w/4.3″ TFT LCD Screen |
Nosepiece: | Quad with click stop |
Objective(s) Type: | (4) Achromatic objectives on turret |
Objective(s) Standard: | DIN 35 RMS |
Objective(s) Magnification: | 4x, 10x, 20x, 40x |
Objective(s) Thread: | WJ 4/5″ x 1/36″ |
Focus Type(s): | Course Focus and Fine Focus |
Focus Travel (per rotation): | 0.7mm to 35.3mm (.027″ to 1.39″) (est.) |
Magnification Range: | 40x, 100x, 200x, 400x, Up to 1600x with digtial zoom |
Illumination Type: | 6.5 – 2.2 |
Illumination Position(s): | TBD |
Illumination Adjustability Mechanism: | Adjustable wheels at base |
Power Source: | Universal 100 to 240V, 50/60 hz multi-country plug and (4) AA (optional) |
Battery Options: | Yes (4AA) |
Stage: | Fully mechanical with metal clips, 88mm x 88mm (3.5″ x 3.5″) – With Filter wheel (Red, blue, green | 1mm, 3mm, 6mm apertures) |
Condenser Type: | Aplantic |
Condenser N.A.: | N.A. 65 |
Tripod Adaptable: | Multiple on wheel |
Eyepiece Type: | CMOS Sensor in lieu of eyepiece |
Sensor Size: | 5MP – 1/2.5″ |
Pixel Size: | 2.2 μm |
Screen type: | High definition touch, 480 x 272 pixels resolution, 109mm (4.3″) with 4x digital zoom, rotates 180° |
Screen Size: | 4.3″ |
Memory Type: | SD Card |
Memory Size: | 8G SD included, Supports up to 32G |
Port(s) In: | AC Plug (power), SD Card slot (32Gmax) |
Port(s) Out: | Video/ TV out, USB 2.0 |
AC Adapter: | 5-6V DC, 200-1000mA tip positive electrical input. Jack should be 5.5mm (.21″) OD, 2.1mm (.08″) ID and 12.5mm (.49″) long |
Still image capture resolution: | 1920×1080 2048×1152 2560×1440 3072×1728 3648×2048 3072×1728 |
Video resolution: | VGA (640 x 480) |
Shutter trigger position: | On LCD Screen |
Software: | Internal Firmware |
Microscope Dimensions: | 78mm x 140mm x 330mm (7″ x 5.5″ x 13″) |
Microscope Weight: | 67 oz (1.9 kg) |
Included Items: | 8GB SD Card USB 2.0 Cable (data transfer) 7 Prepared Slides 4 plug, multi-country AC adapter Dust Cover Carrying Case |
