PHVMAC
Hidden Front Door Camera
Detect and capture, one button fast playback!
Motion is detected through the peephole and the image is captured and stored automatically whether you’re home or away. Battery saving technology allows the PHVMAC’s batteries to last for approximately 9000 triggers.
Easy to install
Set up your front door security camera in 3 steps!
How it Works?
Built-in Sensor
Motion is detected through the peephole, which tiggers the camera
Auto Capture
Images or Video are captured automatically through the peephole
Fast Playback
Instantly review all your visitors on the display, with the push of a button
Motion Detection through Built-in Sensor
All-in-One,No-Extra Sensor.
Motion is detected through the peephole with the ambient light sensor
Review All Photos / Videos Easily
Just One Button To See All Visitors
Review your visitors with the push of a button
How it Works?
Easy to install
Simple DIY three step install.
Built-in Sensor
Motion is detected through the peephole with the ambient light sensor.
Video Visitor Log
Images or video are captured through the peephole and stored.

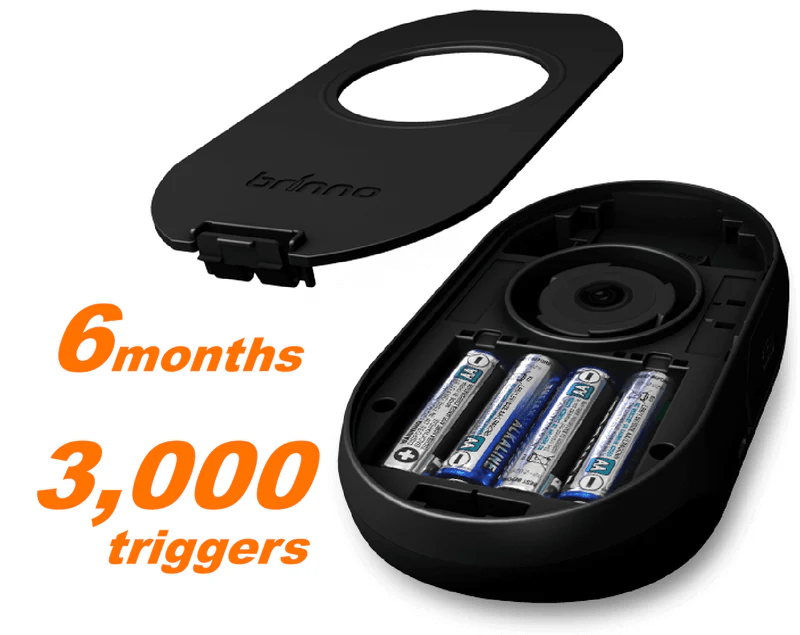

Longest Lasting
Stunning battery life, 4 AA batteries will last up to 6 months
One Button Playback
Review all your visitors with the push of a button.
Capture images / videos
Automatically captures and store images / videos on a Micro SD card.
Specification
Model | PHVMAC12 | PHVMAC14 |
|---|---|---|
PeepHole Barrel | 12mm | 14mm |
Doors Thick | fits any doors 35~57mm (1.38”~2.24”) thick | fits any door 40~69 mm( 1.57”~2.72”) thick |
View angle | View angle: Regular Mode:92°,Zoom Mode:40° | View angle: Regular Mode : 92°,Zoom Mode:40° |
Sensor | 0.3 Mega pixel CMOS sensor | |
LCD Screen | 3.0” TFT | |
Storage | Micro SD card (Supports up to 32 GB, 8 GB recommended) | |
File Format | JPEG, AVI
| |
Power Source | 4 AA batteries ( approx. 9,000 triggers)
| |
Size (WxHxD) | 87 x 158 x 34 mm (3.39”x6.16”x1.32”)
| |
Weight | 170g (0.36lb) (without batteries)
| |
Package Contents
1. PeepHole Viewer (PHVMAC)
2. PeepHole
3. Base Flange
Bungee Cords
4. Washer (for 12mm peephole)
5.Tightening Tool
6. 4 AA Batteries
7. Micro SD card*
8. User Manual

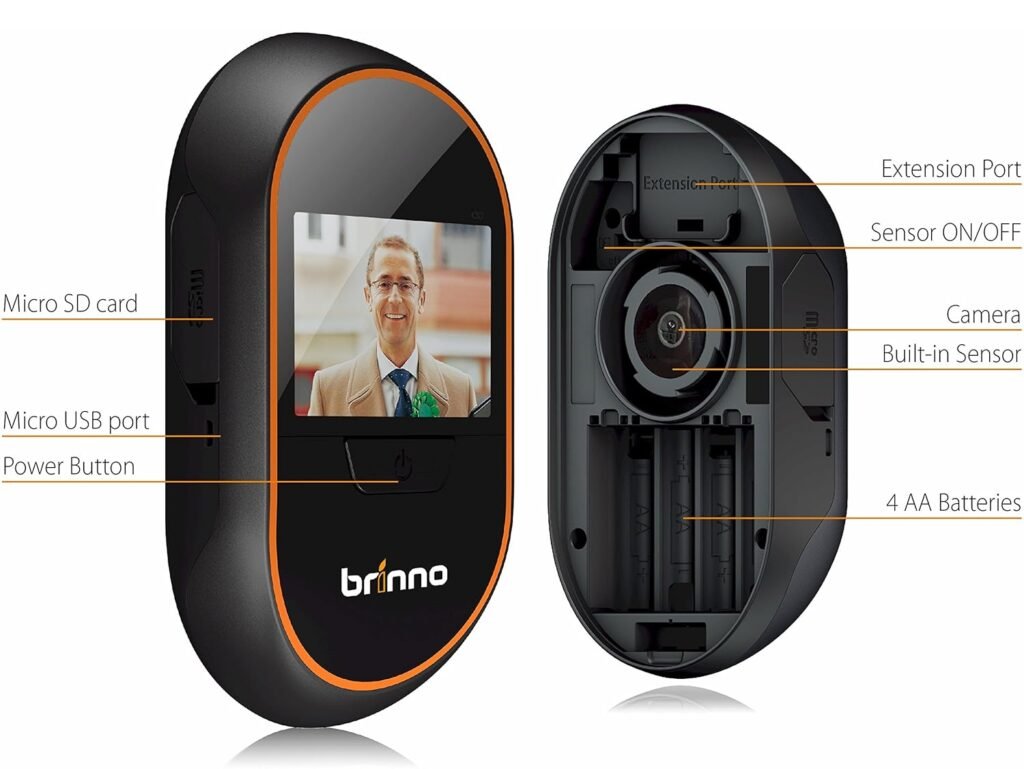

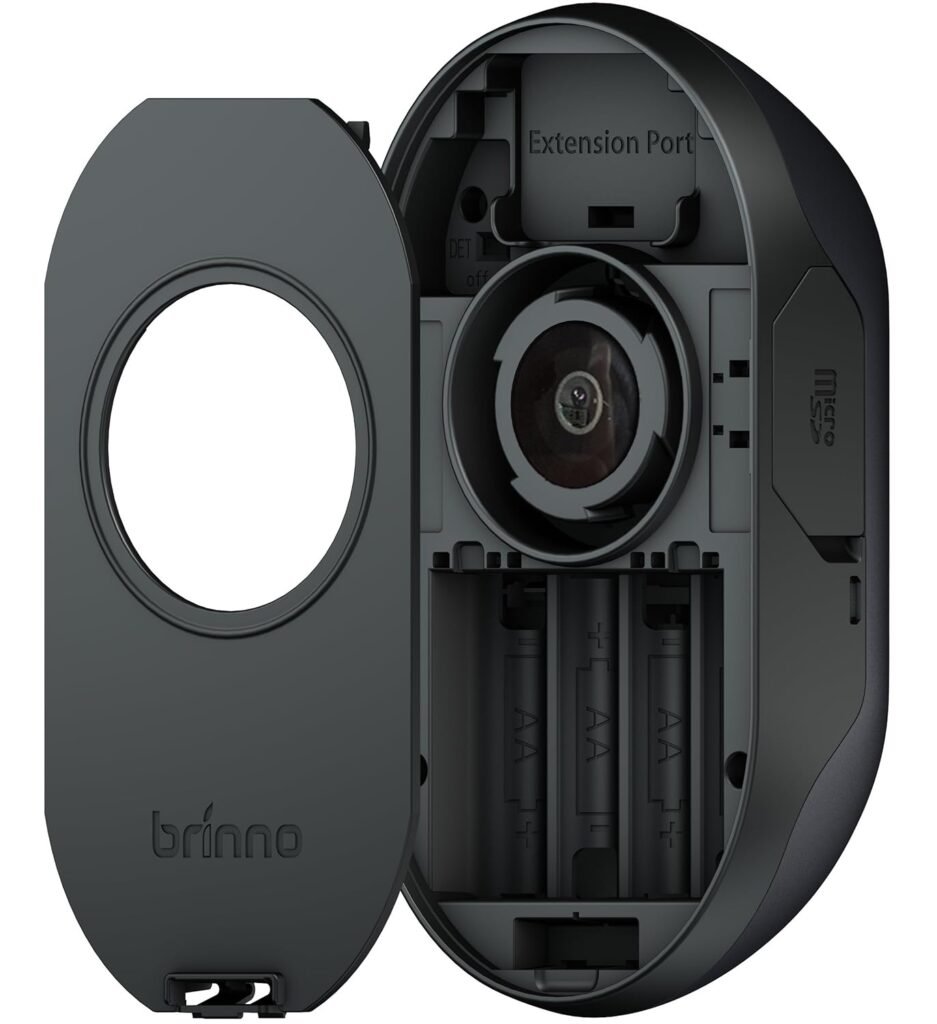

Internal Structure
Comparision
Model | PHV1325 | PHV1330 | PHVMAC |
|---|---|---|---|
Level | Entry | Advanced | Expert
|
Viewer | ✓ | ✓ | ✓ |
LCD Panel | 2.7″ | 3.0″ | 3.0″
|
Brightness Enhancement | ⋆ | ⋆ | ⋆ |
Image Recording | – | Photo | Photo / Video⋆
|
Fast Playback | – | – | ✓
|
Motion Detection | – | (option accessory)⋆ | (Built-in function)⋆
|
External Power | – | – | (DC 5V, Micro USB)⋆
|
Storage | – | Micro SD Card (upto 32 GB) | Micro SD Card (upto 32 GB)
|
Optional Accessory | Motion LED | Motion Sensor Knocking Sensor Motion LED Light Bar | Motion LED Light Bar
|
Size (Wx Hx D) | 146 x 90 x 30 mm | 87x 158x 33 mm | 87x 158x 34 mm |
