GPSMAP® 8410
Durable devices that go wherever you go and track your precise location in the process. Go farther than ever before when hiking and finding adventure.
Watch Video
SERIOUS ANGLERS, CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT
The easy-to-use, easy-to-install chartplotter/sonar combo delivers MFD performance in a combo-size package.
Get wider viewing angles and superior clarity on the touchscreen with a full HD in-plane switching (IPS) display.
Navigate confidently with built-in Garmin Navionics+™ inland and coastal mapping1.
Easily build your marine system using the best of network connectivity.

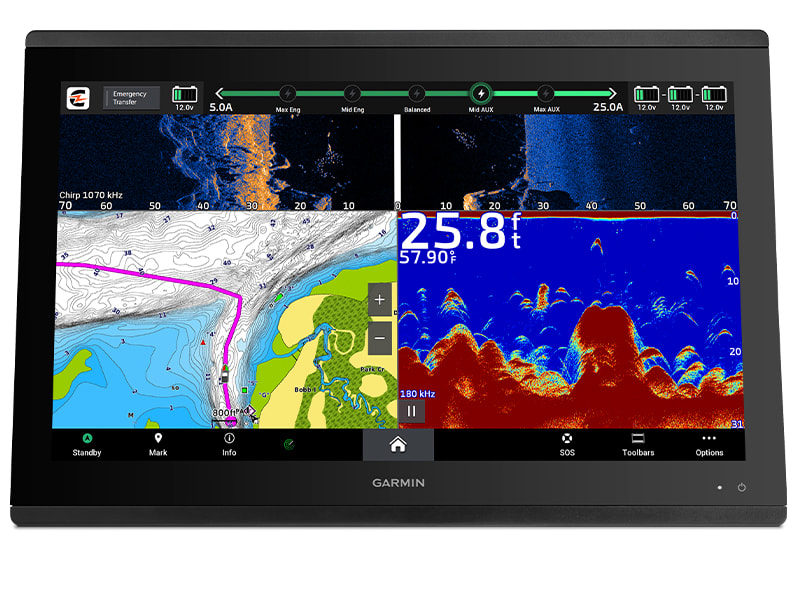

See below and around your boat with built-in sonar capabilities (transducers sold separately).
From ANT® technology to Wi-Fi® networking, there are countless ways to connect to your system.
With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need.

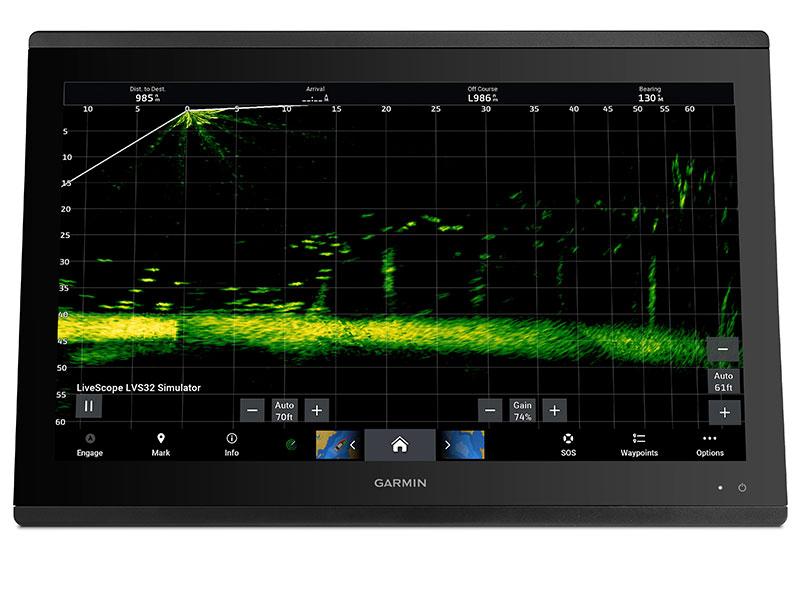

LIVE SONAR SUPPORT
Pair your chartplotter with Garmin live sonar options (transducer sold separately) to see all around your boat in real time.

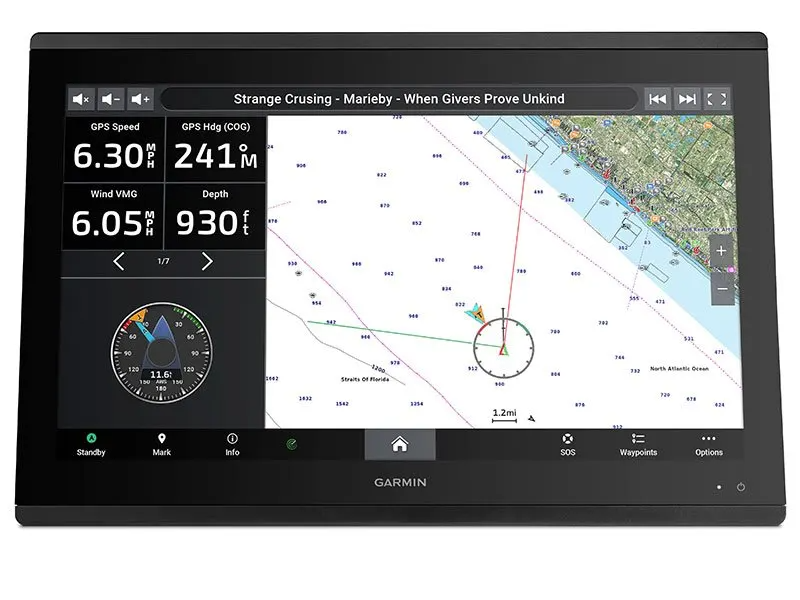

SAILASSIST™ SAILING FEATURES
View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more.

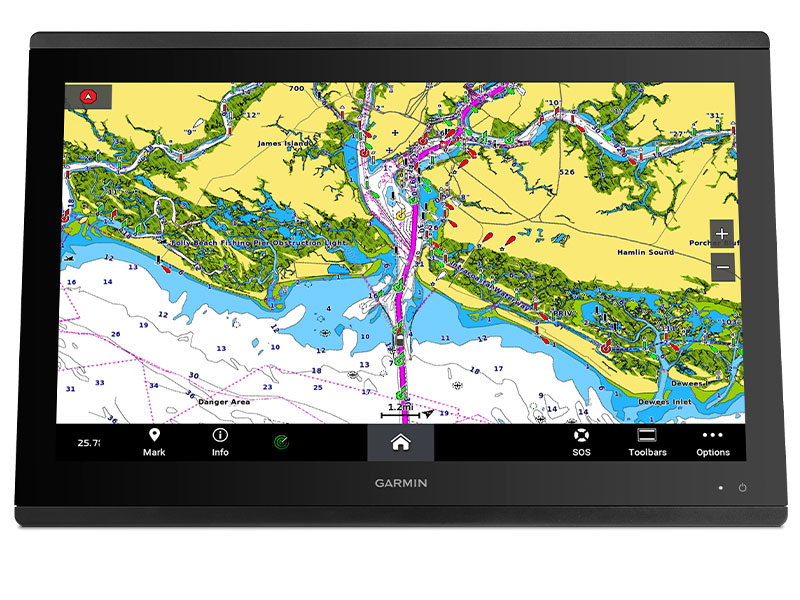

PRELOADED MAPPING
Experience unparalleled coverage and detail with built-in Garmin Navionics+™ integrated coastal and inland mapping that includes Auto Guidance+™ technology2

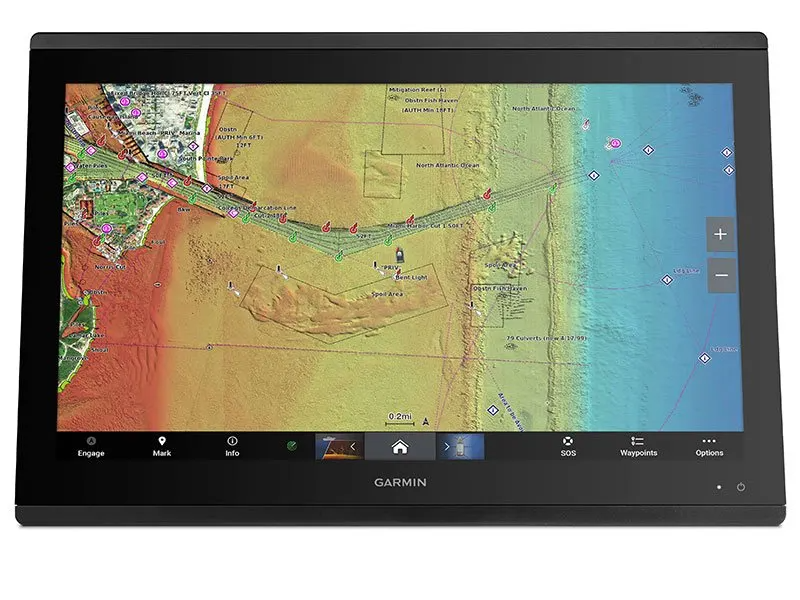

OPTIONAL CHARTS AND MAPS
Bring a fresh new look and feel to your chartplotter with optional upgrade to Garmin Navionics Vision+™ premium chart subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery and more.

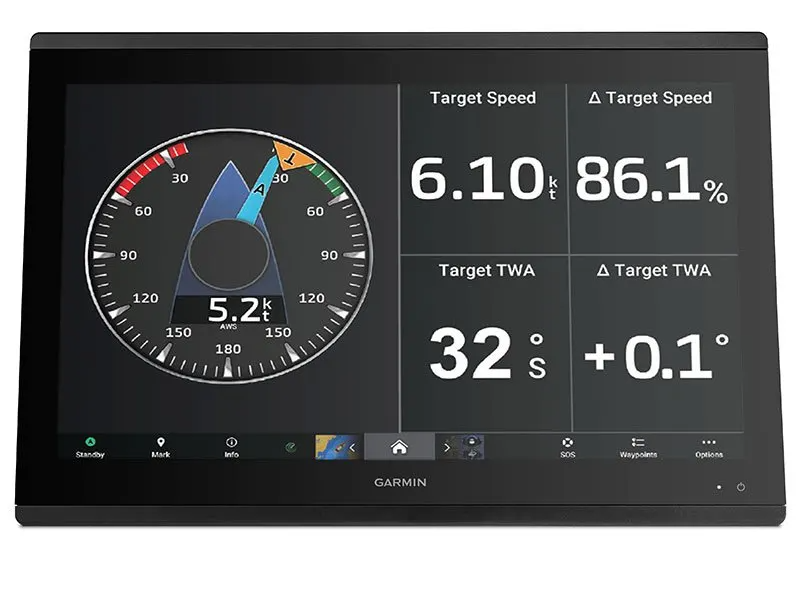

SAILING POLARS
Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.

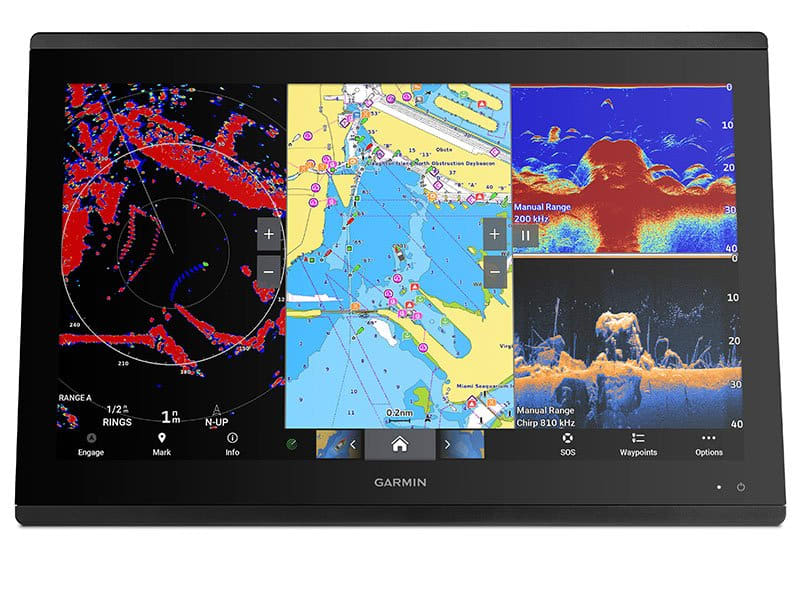

GARMIN MARINE NETWORK
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP cameras — among them.
Made for your helm.

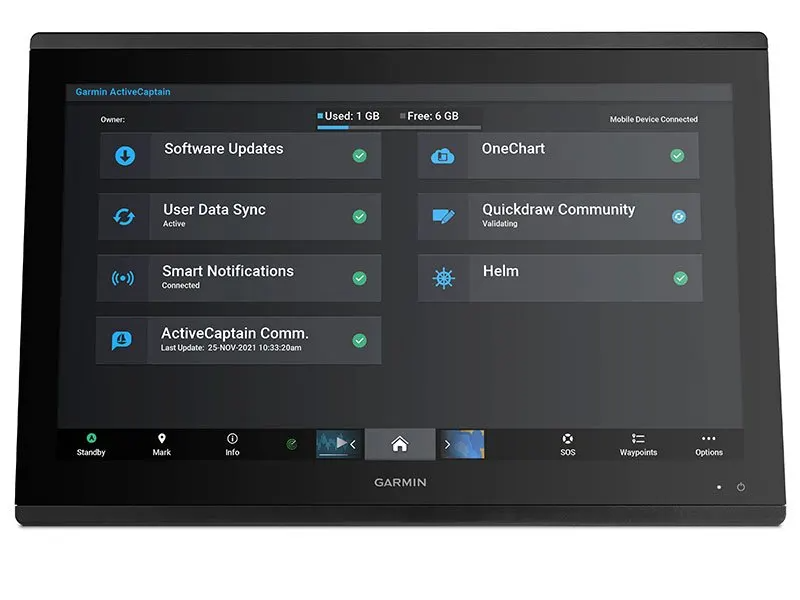

ACTIVECAPTAIN® APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications3 , software updates, Helm, Garmin Quickdraw™ Community data and more.

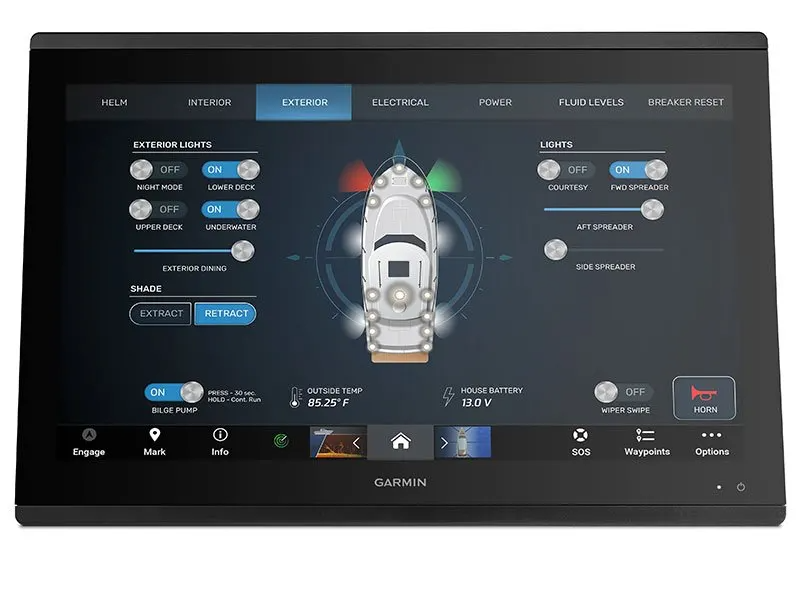

ONEHELM™ FEATURE
This feature brings together all the operations and capabilities of third-party devices, such as EmpirBus™ digital switching, on one screen.

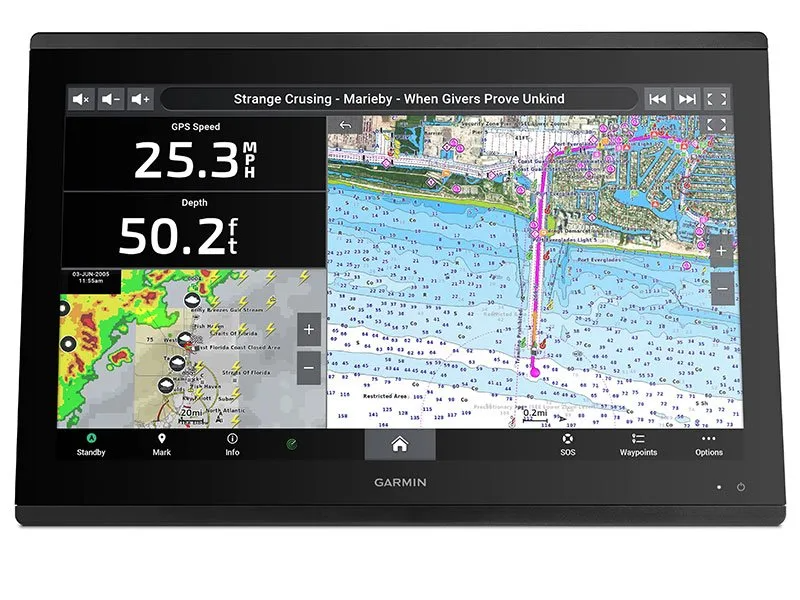

SMARTMODE STATION CONTROLS
Get quick, one-touch access to the information you need to ease high-stress situations such as docking. You can incorporate networked sonar, radar, cameras, media and more.
Sail and navigate with ease.

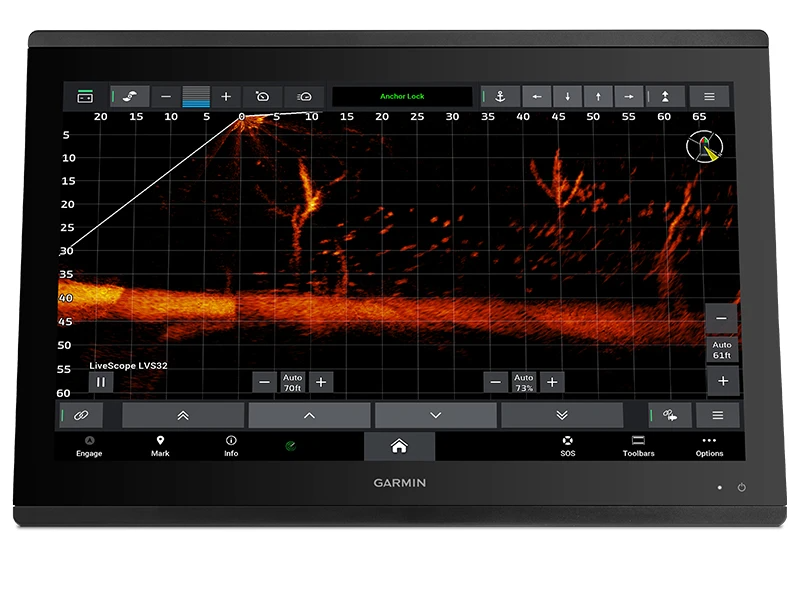

POWER-POLE® SHALLOW WATER ANCHOR
By networking select Garmin chartplotters with a Force® trolling motor and your compatible Power-Pole shallow water anchoring system, you can access advanced boat control features5 from your plotter,

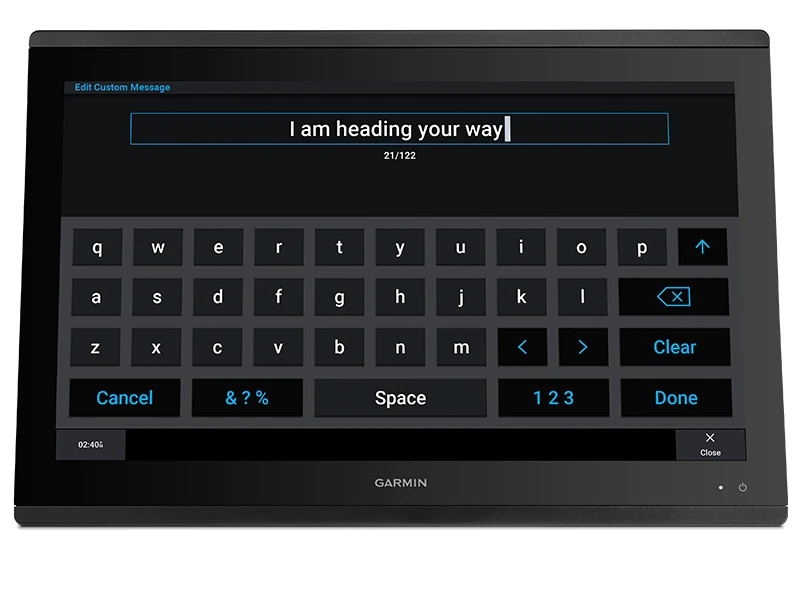

SEND INREACH® DEVICE MESSAGES
Pair your inReach satellite communicator4 to your chartplotter, and type custom messages using your MFD’s on-screen keyboard. Access your contact list or enter an email, inReach address or phone number. You can also group messages by conversation for a texting-like experience.
CHARGE INTEGRATION FROM POWER-POLE
Your CHARGE Marine Power Manager from Power-Pole integrates with compatible Garmin chartplotters to help keep your battery power going longer and stronger on the water.
Connect to everything on your boat.
Specification
General | ||
|---|---|---|
Dimension | 8.1″ x 5.2″ x 2.6″ (20.6 x 13.1 x 6.7 cm) | |
Weight | 1.8 lbs (0.8 kg) | |
Water rating | IPX7 | |
TOUCHSCREEN | ✓ | |
DISPLAY TYPE | WVGA, TN | |
DISPLAY SIZE | 5.4″ x 3.1″, 6.2″ (13.8 x 7.8 cm, 15.7 cm) | |
DISPLAY RESOLUTION | 800 x 480 pixels | |
Mounting options | Flat and flush, bail with optional accessory (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) | |
INPUT | Touchscreen with Keyed Assist | |
Maps & memory | ||
Accepts Data Cards | 2 microSD cards | |
Waypoints | 5000 | |
Track points | 50,000 | |
Tracks | 50 saved tracks | |
Navigation Routes | 100 | |
Sensors | ||
GPS | ✓ | |
GLONASS | ✓ | |
Galileo | ✓ | |
BEIDOU | ✓ | |
Has built-in receiver | ✓ | |
Receiver | 10 Hz | |
NMEA 2000® COMPATIBLE | ✓ | |
Supports WAAS | ✓ | |
SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS | ✓ | |
Built-in maps | ||
Tide tables | ✓ | |
Optional map support | ||
BLUECHART G3 | ✓ | |
BLUECHART G3 VISION | ✓ | |
LAKEVÜ G3 | ✓ | |
LAKEVÜ G3 ULTRA | ✓ | |
GARMIN NAVIONICS+™ | ✓ | |
GARMIN NAVIONICS VISION+™ | ✓ | |
TOPO 100K | ✓ | |
STANDARD MAPPING | ✓ | |
GARMIN QUICKDRAW CONTOURS | ✓ | |
Chartplotter features | ||
Smart Mode Compatible | ✓ | |
AIS | ✓ | |
DSC | ✓ | |
Supports Fusion-Link™ compatible radios | ✓ | |
GSD Black Box Sonar Support | ✓ | |
GCV Black Box Sonar Support | ✓ | |
ActiveCaptain® compatible | yes | |
GRID (Garmin Remote Input Device) compatible | ✓ | |
Wireless Remote Compatible | ✓ | |
Wireless Remote Compatible | ✓ | |
Sailing Features | ✓ | |
Sailing Features | ✓ | |
Spoken audio alerts | ✓ | |
OneHelm support | ✓ | |
Electrical Features | ||
Power input | 10-32 Vdc | |
Typical current draw at 12 VDC | 1.5 A | |
Maximum current draw at 12 VDC | 6.0 A | |
Maximum power usage at 10 VDC | 40.1W | |
Sonar features & specifications | ||
Displays sonar | ✓ | |
POWER OUTPUT | yes (with GCV™ black box, sold separately) | |
Traditional sonar (dual frequency/beam) | yes (with GCV™ black box, sold separately) | |
SideVü | yes (with GCV™ black box, sold separately) | |
Panoptix™ sonar |
✓ | |
LiveScope |
✓ | |
Connections | ||
NMEA 2000® PORTS | 1 | |
NMEA 0183 Input (Rx) Ports | 1 | |
NMEA 0183 output (Tx) ports | 1 | |
Video input ports | 1 (BNC composite); 1 HDMI (HDCP compliant) | |
Video output ports | 1 HDMI | |
J1939 ports | 1 | |
Garmin Marine Network Ports | 2 | |
USB ports | ✓ | |
BLUETOOTH® pairing | ✓ | |
ANT® (Connectivity) | ✓ | |
Garmin Wi-Fi network (local connection) | ✓ | |
