ECHOMAP™ UHD2 5" Chartplotter
Durable devices that go wherever you go and track your precise location in the process. Go farther than ever before when hiking and finding adventure.
Watch Video
THE CHOICE IS YOURS
See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 4cv fishfinder with transducer.
The bright 6″, 7″ or 9″ touchscreen display with keyed-assist is user-friendly and easy to read.
Good things come in threes. Supports three sonar types, that is: Garmin traditional, ClearVü™ and SideVü™ sonars¹.
Improved detail? Check. Distinguished targets? Yep. That’s the beauty of high-contrast vivid colour palettes.
If you’re running another ECHOMAP UHD2 chartplotter, you can wirelessly share sonar, waypoints and routes.
Want our best in mapping? Who doesn’t? Select chartplotters come with Garmin Navionics+™ mapping.

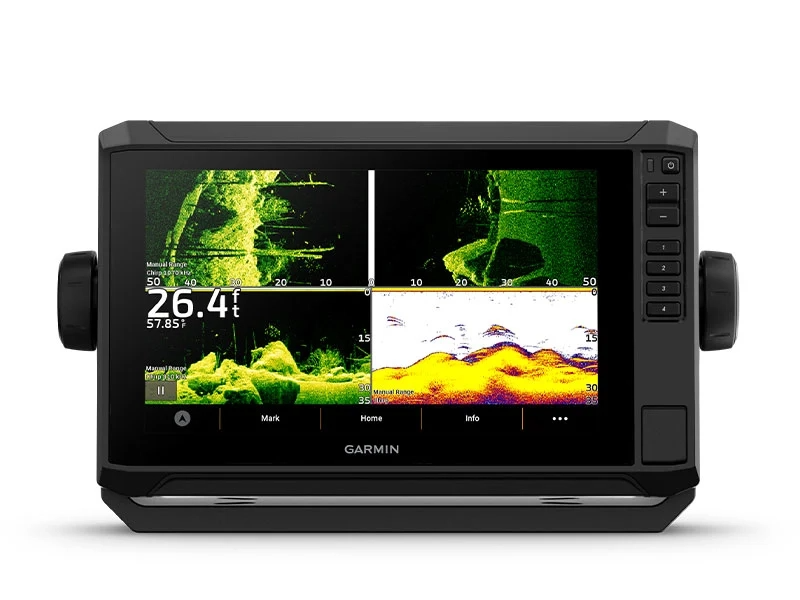

SONAR SUPPORT

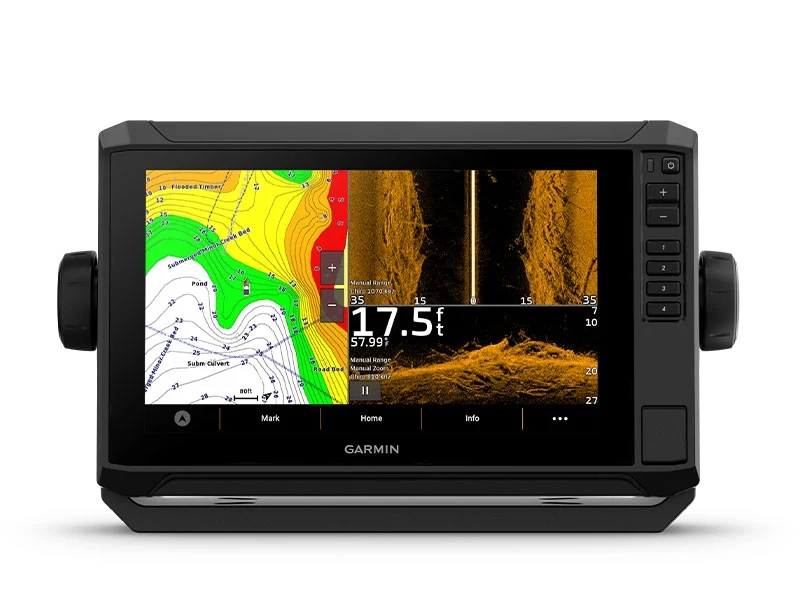

With support for crisp, clear traditional sonar¹ and brilliant ClearVü and SideVü scanning sonars¹, the fish will have nowhere to hide. Your ECHOMAP UHD2 also supports LiveScope™ live-scanning sonar¹.

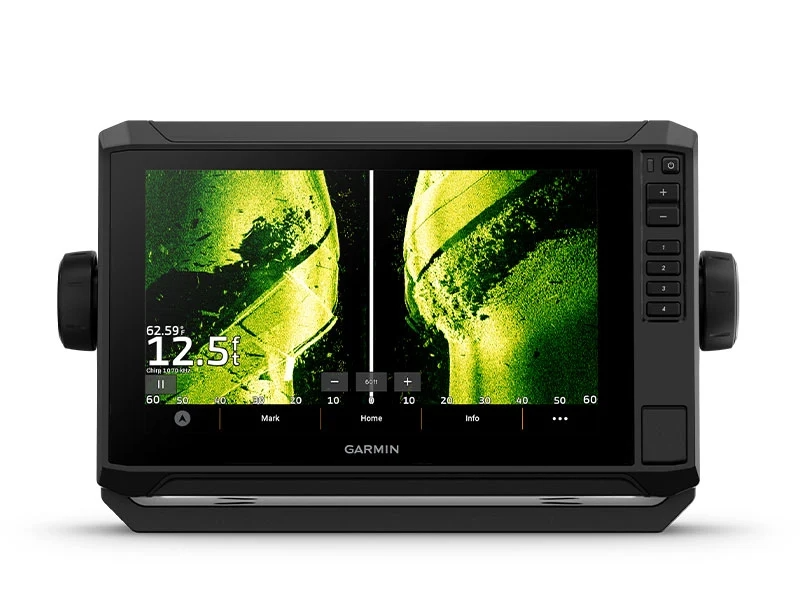

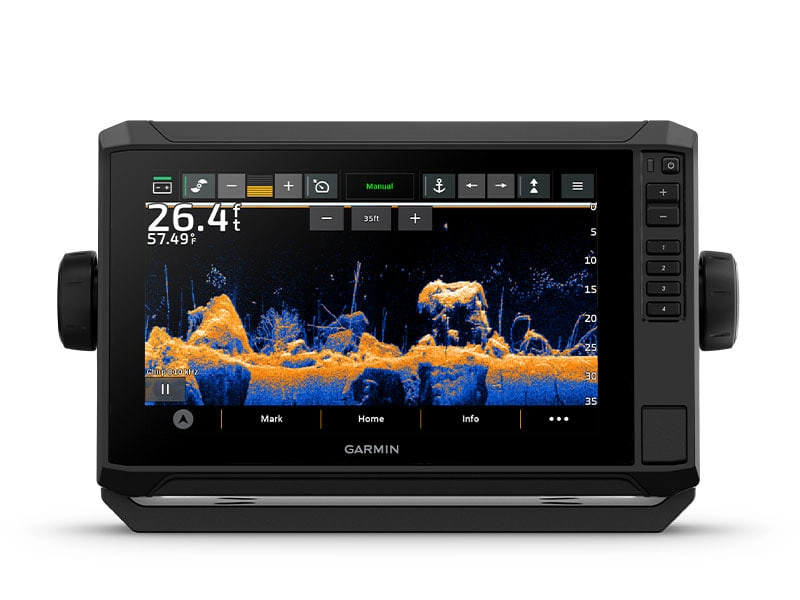

VIVID COLOUR PALETTES
High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.

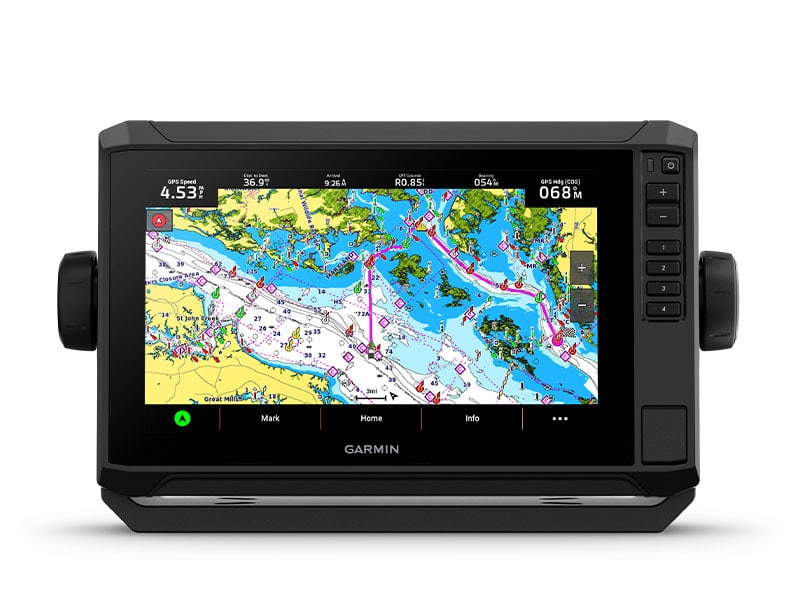

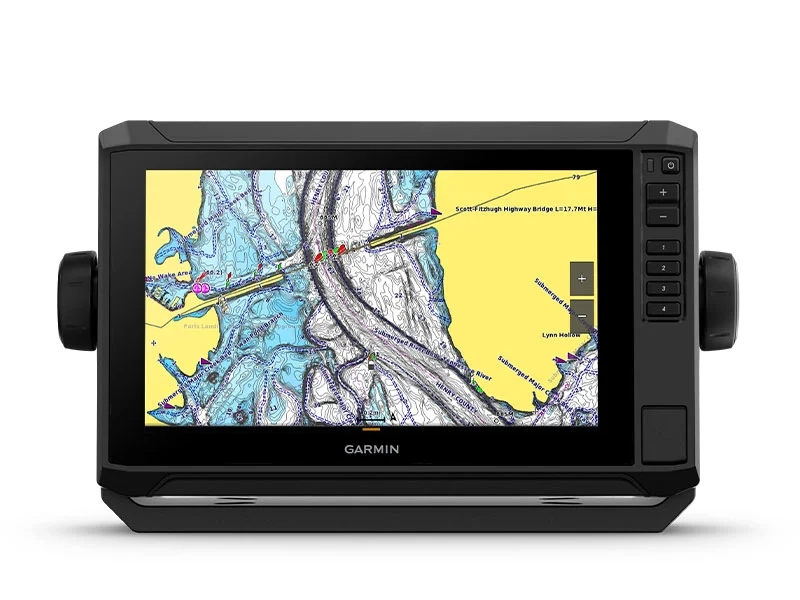

PRELOADED CHARTS
You’ve never seen Garmin cartography like this before. Chartplotters come with built-in Garmin Navionics+ cartography for U.K., Ireland and the Netherlands which includes a 1-year subscription for daily updates, raster cartography and more.
WIRELESS NETWORKING
If you have another compatible ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar1, waypoints and routes — with them.

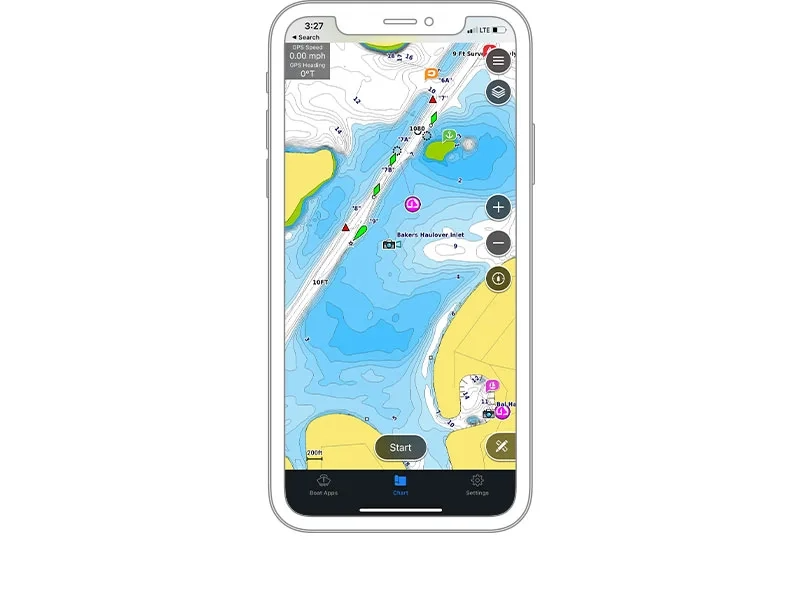

ACTIVECAPTAIN® APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications2, software updates, Garmin QuickDraw Community data and more.
AUTO GUIDANCE+™ TECHNOLOGY
Built-in Garmin Navionics+ charts for U.K., Ireland and the Netherlands include downloadable Auto Guidance+ technology3 with the ActiveCaptain app.
It doesn't get any better than this.

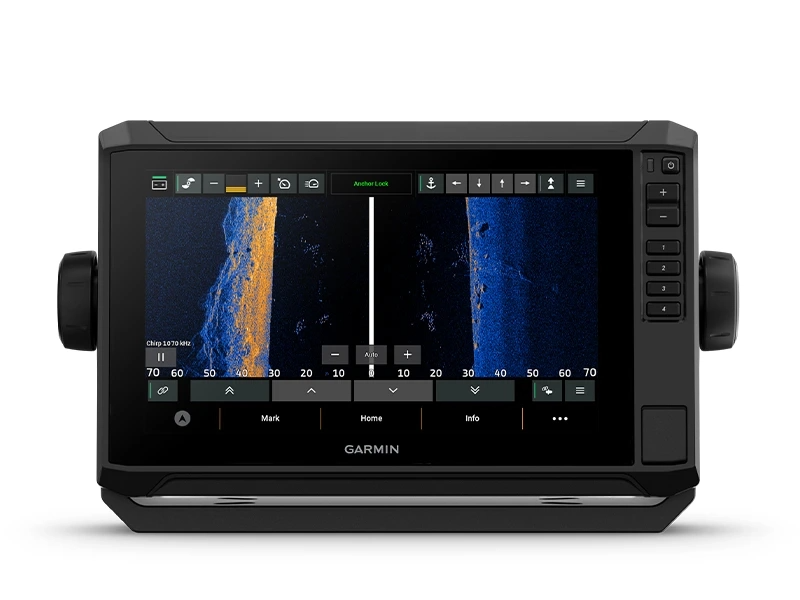

TROLL WITH FORCE®
Your ECHOMAP UHD2 chartplotter wirelessly connects to your Force Trolling Motor to create and follow routes, navigate to waypoints, control speed, check battery life and more.
SHALLOW WATER ANCHOR
By networking selected Garmin chartplotters with a Force® trolling motor and your compatible Power-Pole shallow water anchoring system, you can access advanced boat control features4 from your plotter, including smart anchor auto-deployment, smart anchor jog, auto stow

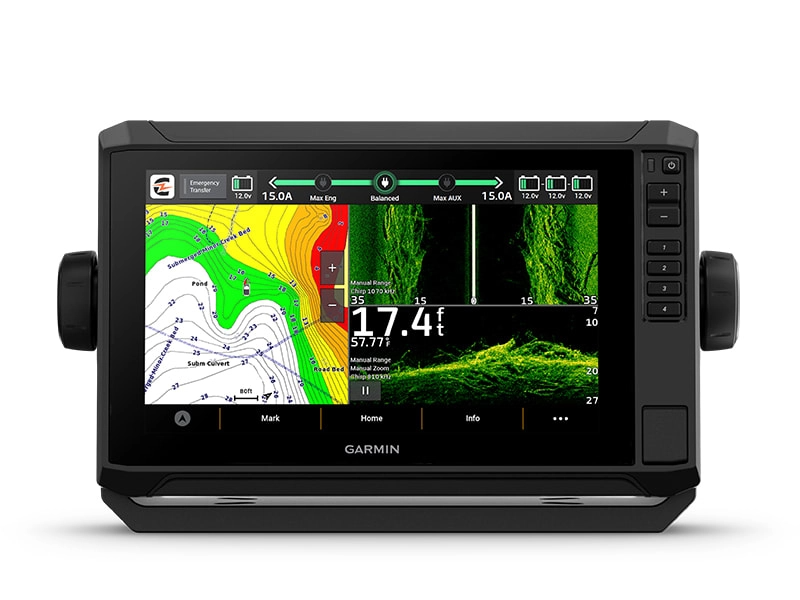

CHARGE INTEGRATION FROM POWER-POLE
Your CHARGE Marine Power Manager from Power-Pole integrates with compatible Garmin chartplotters to help keep your battery power going longer and stronger on the water.

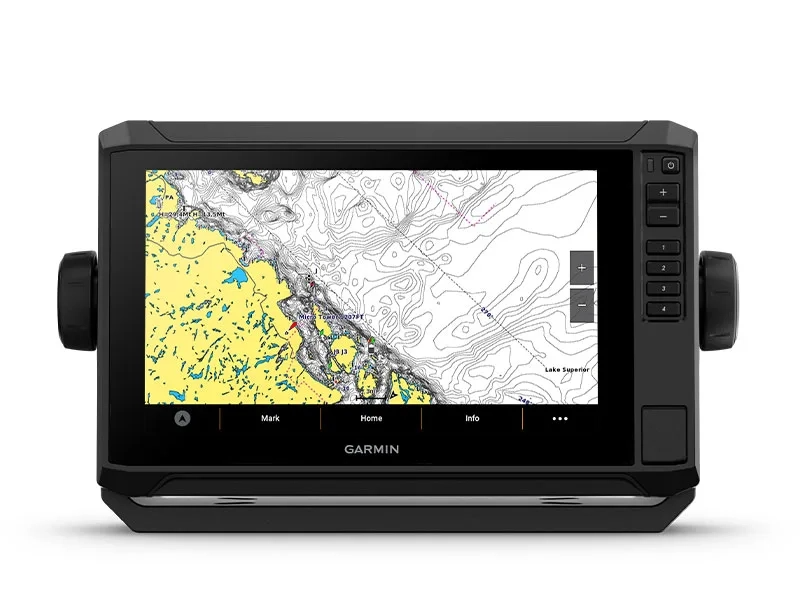

MULTI-BAND GPS
Get improved position accuracy, particularly in areas where signals are reflected or weak, with multi-band GPS.
Specification
General | |
|---|---|
Dimension | 11.6″ x 7.7″ x 3.9″ (29.5 x 19.5 x 9.8 cm) |
Weight | 4.0 lbs (1.8 kg) |
Water rating | IPX7 |
TOUCHSCREEN | ✓ |
DISPLAY TYPE | WXGA, IPS |
DISPLAY SIZE | 8.5″ x 5.4″; 10″ diagonal (21.7 x 13.6 cm; 25.4 cm diagonal) |
DISPLAY RESOLUTION | 1280 x 800 pixels |
Mounting options | Bail or flush |
INPUT | Touchscreen with Keyed Assist |
Maps & memory | |
Accepts Data Cards | 2 microSD cards |
Waypoints | 5000 |
Track points | 50,000 |
Tracks | 50 saved tracks |
Navigation Routes | 100 |
Sensors | |
GPS | ✓ |
GLONASS | ✓ |
Galileo | ✓ |
BEIDOU | ✓ |
Has built-in receiver | ✓ |
Receiver | 10 Hz |
NMEA 2000® COMPATIBLE | ✓ |
Supports WAAS | ✓ |
SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS | ✓ |
Built-in maps | |
BUILT-IN AUTO GUIDANCE+ | ✓ |
Garmin Navionics+ Inland & Coastal | Yes (see Additional) |
Tide tables | Yes (see Additional) |
Optional map support | |
BLUECHART G3 | ✓ |
BLUECHART G3 VISION | ✓ |
LAKEVÜ G3 | ✓ |
LAKEVÜ G3 ULTRA | ✓ |
GARMIN NAVIONICS+™ | ✓ |
GARMIN NAVIONICS VISION+™ | ✓ |
TOPO 100K | ✓ |
STANDARD MAPPING | ✓ |
GARMIN QUICKDRAW CONTOURS | ✓ |
Chartplotter features | |
AIS | ✓ |
DSC | ✓ |
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | ✓ |
ACTIVECAPTAIN MOBILE PLANNING COMPATIBLE | yes |
Sailing features | ✓ |
Electrical Features | |
Power input | 9 to 18 Vdc |
Typical current draw at 12 VDC | 5.0 A |
Maximum current draw at 12 VDC | 3.2 A |
Maximum power usage at 10 VDC | 34 W |
Sonar features & specifications | |
Displays sonar | ✓ |
POWER OUTPUT | 600 W |
Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
SideVü | Built-in 260/455/800/1000/1200 kHz |
SideVü | Built-in 260/455/800/1000/1200 kHz |
Panoptix™ sonar |
✓ |
LiveScope |
✓ |
Connections | |
NMEA 2000® PORTS | 1 |
Garmin Marine Network ports | 2 (large connector) |
12-PIN TRANSDUCER PORTS | 12-pin scanning sonar |
ANT+ (Connectivity) |
✓ |
Garmin Wi-Fi Network (local connection) |
✓ |
Additional | |
ADDITIONAL | Garmin Navionics+ (Inland and Coastal): 106sv, 105sv Australia and New Zealand Tide tables: 106sv, 105sv Australia and New Zealand |
