STRIKER™ Plus 4cv
Durable devices that go wherever you go and track your precise location in the process. Go farther than ever before when hiking and finding adventure.
Watch Video
4” GPS Fishfinder with Industry-leading Sonar and Quickdraw Contours Mapping Software

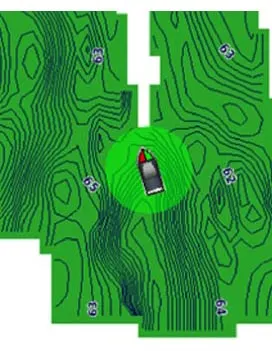

Garmin Quickdraw Contours
Nobody knows the waters you fish better than you and your fellow fishermen. While you are trolling the shorelines and the depths, Quickdraw Contours mapping software creates HD fishing maps of the places you’ve been. No special knowledge is required. STRIKER Plus 4 can now store up to 2 million acres of your Quickdraw Contours maps with 1’ contours.

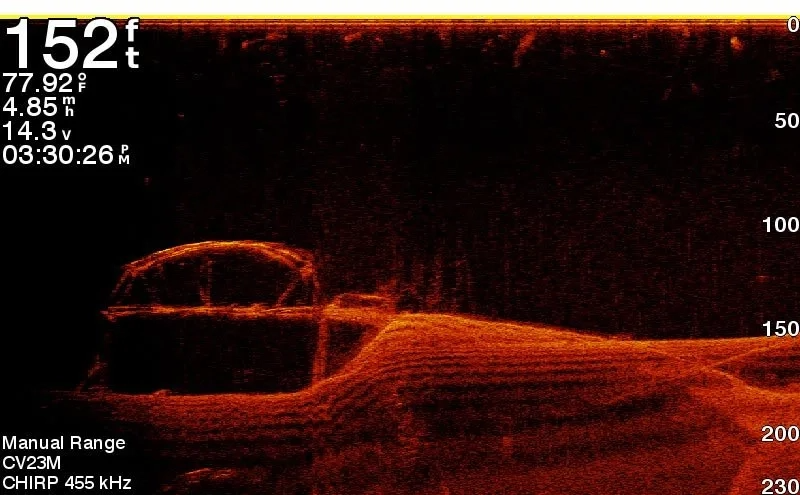

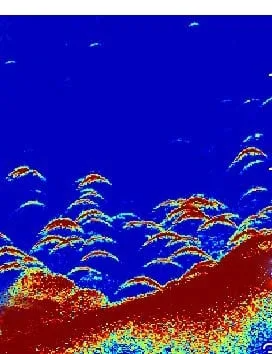

CHIRP Sonar Clarity
The STRIKER Plus 4 fishfinder includes Garmin CHIRP technology for a higher level of clarity and detail that you have come to expect from Garmin. Crystal-clear sonar images provide remarkable target separation and resolution in shallow and deeper water. Bottom contours are more visible, even at higher speeds, and signal noise can be suppressed at greater depths for a timely interpretation of what’s below.
Built for You
The STRIKER Plus 4 fishfinder makes fishing a breeze, and it’s built to work in any environment. The bright, sunlight-readable display gives you a clear view of what is below your boat, even on the brightest days. And the larger screen gives you a better view of what is happening below the boat. The intuitive user interface makes it simple to navigate to whatever feature you need, so you are ready for anything on the water.

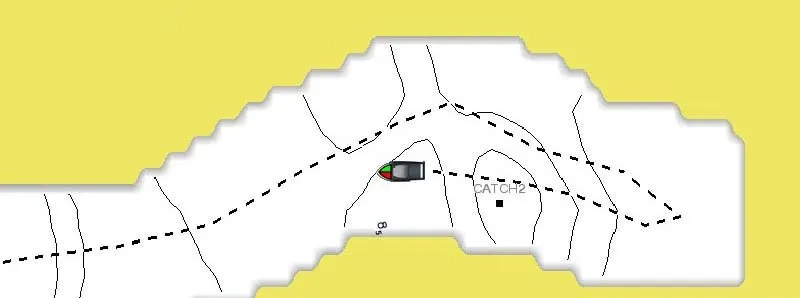

GPS Fishfinder
The built-in, high-sensitivity GPS finds and maintains your position anywhere you go on the water. The GPS allows you to mark waypoints for different locations. So, if the fish are biting in 1 spot, you can mark it, and return to it on your next trip. Mark docks, boat ramps and other locations on the lake, and create routes back to them for your next trip.
GPS also allows STRIKER Plus 4 to show your speed on screen, so you can be sure you’re trolling at the right speed for the lure you’re using or in wake-controlled areas.
Specification
General | ||
|---|---|---|
Dimension | 3.9” x 6.9” x 1.8” (9.8 x 17.4 x 4.5 cm) | |
Weight | 0.7 lbs (0.3 kg) | |
Water rating | IPX7 | |
Display Type | QSVGA | |
Display resolution | 272 X 480 pixels | |
Sonar Features | ||
Frequency | Traditional: 50/77/83/200 kHz | |
Transmit power | 200 W (RMS) | |
Bottom Lock (shows return from the bottom up) | ✓ | |
Water Temperature Log | ✓ | |
Fishfinder Features | ||
Split-screen zoom | ✓ | |
Fish Symbol ID (helps identify fish targets) | ✓ | |
Autogain technology (minimizes clutter; maximizes targets) | ✓ | |
Adjustable depth line (measures depth of underwater objects) | ✓ | |
A-scope (real time display of fish passing through transducer beam) | ✓ | |
Water temperature sensor included | ✓ | |
Additional | ||
Additional | One 4-pin transducer port Quickdraw Contours Integrated GPS Mark Waypoints Course over Ground (COG) Current draw @ 12V: 0.23A | |
