Song Meter Micro 2
Enjoy superior weather protection thanks to an included rainfly, welded corners, and inverted seams to keep water from getting in.

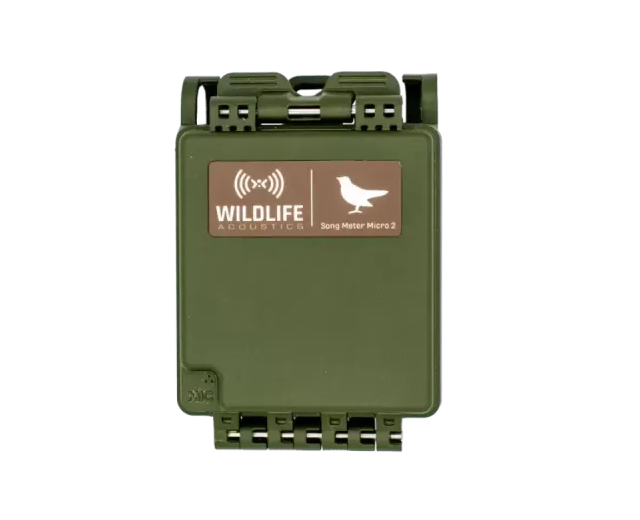

Song Meter Micro 2
Get maximum data for your dollar with our most compact and economical passive acoustic recorder. Record birds, amphibians, terrestrial mammals, soundscapes, and more for up to 280 hours. Lightweight and excellent for big jobs on a budget.
- Record up to 280 Hours
- Ergonomic, Hinged Enclosure
- Rugged IP67 Weatherproof Housing
- Built-in Tripod Mount
Key Features
Built-for-Purpose Design
Assembly not required.
Micro 2 conveniently comes with all the components you need to record in an ultra-compact, lightweight package so you can hit the ground running. Add an SD card and batteries, configure your settings and schedule, and you’re ready to go!
The hinged, ergonomic housing features mounting loops and a mounting tab to accommodate bungee cords, zip ties, cable locks, or screws, and a built-in tripod mount permits flexible mounting in various settings.
IP67 Weatherproof Enclosure
All-weather performance.
The soundscapes and wildlife you listen for exist in all climates. Micro 2’s rugged IP67-rated enclosure provides dependable protection for reliable, all-weather performance and peace of mind, so you don’t miss a thing—whether you deploy in heat, sleet, or driving rain.
Inside our Environmental Test Chamber, we repeatedly stress-tested the Micro 2 to withstand extreme humidity and sustained temps of 55℃ and -20℃ before cycling through these extremes. Finally, we submerged Micro 2 in one meter of water for 30 minutes to certify its water resistance.

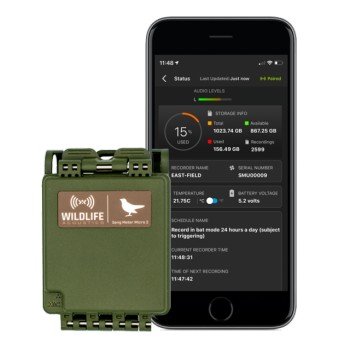

Song Meter Configurator App
Flexible, Efficient Configuration.
Use your Bluetooth®-enabled iOS® or Android™ smartphone or tablet to program your GPS location, recording schedule, and settings. Record only peak activity periods or stretch the recorder’s battery life over extended deployments. Apply preprogrammed “Quick Start” schedules or configure custom schedule blocks—then use a single configuration file to program multiple recorders.
Check battery and memory card status without disrupting the recorder, and retrieve location and time zone information from sound file metadata when it’s time for analysis!
Sound-Lab Tested
Clear, Consistent Performance.

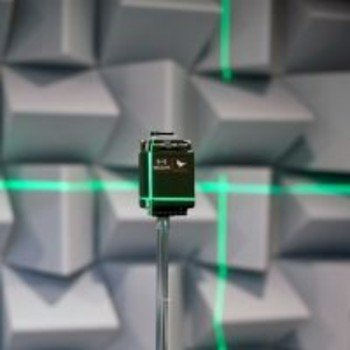

A lot is staked on your recordings, so we invest heavily in testing our equipment, which includes an on-site hemi-anechoic chamber and Brüel and Kjær calibration instruments.
When designing the Micro 2, our engineers precisely measured and qualified the performance of the Micro 2 microphone within its enclosure. The result? You get reliable, consistent performance with clean recordings with few distractions, accelerating analysis and discovery.
Specification
Microphone
| One (1) built-in acoustic microphone
| ||
Recording Format
| Single-channel 16-bit PCM WAV files | ||
Sample Rate (per Second)
| 8, 12, 16, 22.05, 24, 32, 44.1, 48, 96, 192, 256 kHz
| ||
Run Time
| Up to 280 hours at 24 kHz with alkaline batteries
| ||
Battery Type(s)
| Four (4) AA alkaline or rechargeable NiMH
| ||
Memory Storage
| One (1) microSD card (up to 2 TB)
| ||
User Interface
| iOS® or Android™ smartphone or tablet via Song Meter Configurator app or desktop configurator
| ||
Dimensions |
Height: 4.0 in (102 mm) Width: 2.8 in (71 mm) Depth: 1.4 in (35 mm) | ||
Weight |
0.62 lb / 281 g (with batteries) 0.26 lb / 118 g (without batteries) | ||
Enclosure Material | Polycarbonate | ||
Environmental Specifications |
IP67-Rated Weatherproof Housing | ||
Operating Temperature Range |
-4℉ to 185℉ (-20℃ to 85℃) | ||
Warranty |
One (1) Year | ||

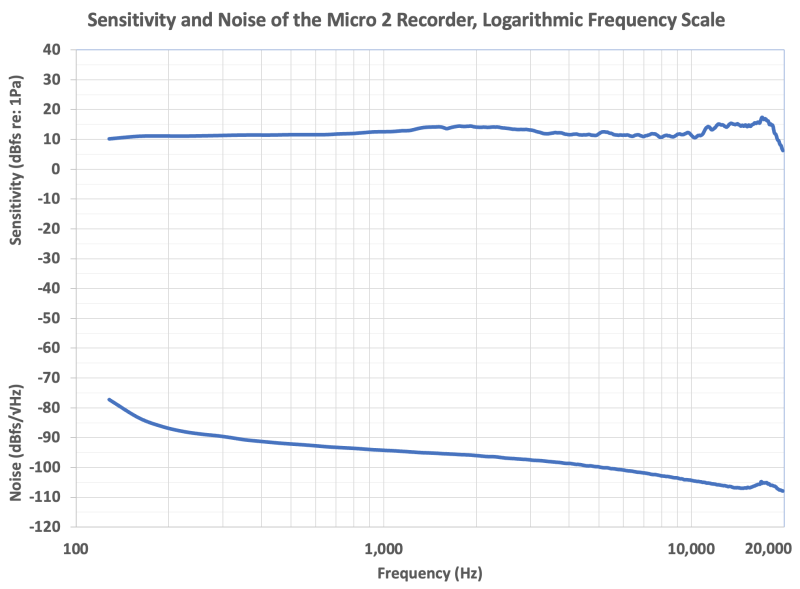

Sensitivity and Noise Charts
The following charts reflect default gain (+18 dB), 48 kHz sample rate, calibrated sound source one meter from the recorder, perpendicular to microphone axis.
