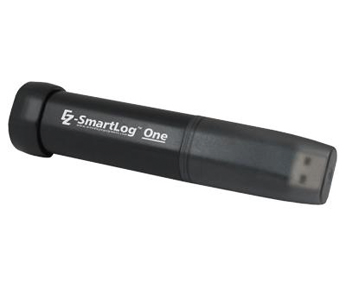

EZ-SMARTLOG ONE USB DATALOGGER
This standalone data logger measures and stores up to 16,382 temperature readings over a -35 to +80°C (-31°F to +176°F) range.
Features
- USB interface for set-up and data download – The user can easily set up the logging rate and start-time, and download the stored data by plugging the data logger into a PC’s USB port and running the purpose designed software
- Data can be graphed, printed and exported to other applications
- User-programmable alarm thresholds
- Status indication via red, green and orange LEDs
- Supplied with replaceable internal lithium battery typically allows logging for 1 year
- Supplied with Windows control software which is easy to install and allows the following parameters to be configured:
– Logger name (up to 16 characters)
– °C or °F
– Logging rate (10s, 1m, 5m, 30m, 1hr, 6hr, 12hr)
– High and low alarm levels
– Start date and time
(compatible with Windows 7/8/10) - Environmental protection to IP67
Specifications
Measurement Rate | -35°C – 80°C (-31°F – 176°F) |
Logging Rate | 10 seconds – 12 hours |
Alarm LED’s | 9 alarm combinations |
Internal Resolution | 0.5°C (1°F) |
Accuracy | ±1 (±2) |
Operating Temperature | -35° – 80°C (-31°F – 176°F) |
Battery | 3.6V 1/2 AA replaceable lithium |
Battery Life | 1 year |
Moisture Protection | IP67 when cap filled |
IP67 when cap filled | 100 (H) x 25 (W) x 25 (D) mm |
Ordering Information
| |
Product Code | Product Description |
WD2998 | EZ-SmartLog One Datalogger |
