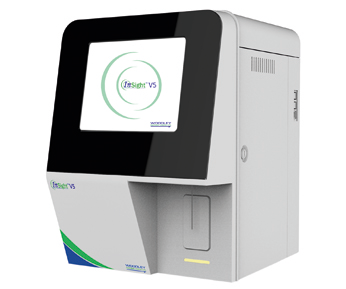

InSight V5 Haematology Analyser
The InSight V5® is a 5-part differential haematology analyser with laser which is a fully automated multi-species analyser ideal for in-practice use.
The InSight V5® is a 5-part differential haematology analyser with laser which is a fully automated multi-species analyser ideal for in-practice use
Features
- Quick and easy to use
- Small sample volume – 15µl whole blood
- 60 second analysis time
- 5-part differential, 23 parameters
- Species specific reference ranges
- Independent channel for Basophil measurement
- Powerful capability to flag abnormal cells
- Fully automated
- Touch screen
- Low maintenance
- Results transmitted via InSight p-LINK to Practice Management Systems
How to Use
Specifications
Principles
| Tri-angle laser scatter method for WBC category and WBC counting Impedance method for RBC and PLT counting Cyanide free reagent and colorimetric method for haemoglobin concentration testing |
Samples
| Analysis Time – 60 seconds Sample Volume – 15μl whole blood Sampling – Manual mode |
Species | Dog, Cat, Rabbit, Horse, Cow Guinea Pig, Mouse, Pig, Rat & Sheep
|
Graphic Parameters
| Four 2D scattergrams
Three histograms |
User Interface
| Easy to use, menu driven user interface Screen type – 10.4″ (26.4cm) LED backlit, colour graphics LCD, resolution of 800 x 600 Data storage capacity – up to 50,000 results One LAN interface Printer options – built-in thermal printer or connect to external inkjet and laser printers 4 x USB interfaces External Equipment – keyboard, mouse, barcode scanner and USB flash drive can be connected via the USB interface |
Software Languages | English Chinese Spanish French Russian Portuguese |
Dimensions | Width – 36.4cm (14.3″) Depth – 43.1cm (17″) Height – 49.8cm (19.6″) Weight – 26.5kg (58.4lbs) Power Supply – 100-240V A |
Ordering Information | |
Product Code | Product Description |
WD0361 | InSight V5 Haematology Analyser |
WD0367 | InSight V5 Reagent Pack (10L Diluent, 100ml LYC-1, 200ml LYC-2, 2 x 50ml CLE-P Cleanser) |
WD036210 | Diluent (10L/Bottle) |
WD0363 | LYC-1 (100ml/Bottle) |
WD0364 | LYC-2 (200ml/Bottle) |
WD0365 | CLE-P Cleanser (50ml/Bottle) |
WD1154F | InSight V5 QC 3ml (Normal) |
WD0353 | V5 Diluent Card |
WD0354 | V5 Lyse 1 Card |
WD0355 | V5 Lyse 2 Card |
WD1210 | Printer Paper |
