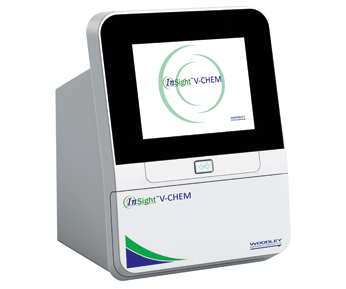

InSight V-CHEM Veterinary Chemistry Analyser
The InSight V-CHEM® Veterinary Chemistry Analyser provides fast, accurate results.
The InSight V-CHEM® Veterinary Chemistry Analyser provides fast, accurate results.
Features
- 8 minutes analysis time for Whole Blood, 7 minutes for Serum and Plasma
- Self-contained, single use reagent discs, 3 simple steps to read results
- Built-in Realtime Quality Control (RQC) system, self-calibrating reagent discs
- Automatic self-test and precision calibration
- Wi-Fi connectivity – automatic software updates
- Touch screen
- Maintenance free
- Results transmitted via InSight p-LINK to Practice Management Systems
Chem 24 Panel
General Health Panel
General Health Plus
Preanaesthetic Panel
Preanaesthetic Plus Panel
Liver & Renal Panel
New TabElectrolytes Panel
Critical Care Panel
Avian & Reptile Panel
Large Animal Panel
Equine Panel
Diabetes Panel
ALP, ALT, AST, BUN, CREA, GLU, ALB, TP, TBIL, AMY, Ca, PHOS, BA, GGT, CK, CHOL, tCO2, Mg, TG (GLO*, A/G*, AST/ALT*, Ca/PHOS*, BUN/CREA*)
How to Use
Ordering Information
Sample Type | Whole Blood, Plasma, Serum |
Sample Size | 100µl |
Time to Results | 8 minutes for Whole Blood, 7 minutes for Serum and Plasma |
User Interface | Full colour touchscreen |
Software Languages | English, Chinese, Spanish, French, German, Russian, Polish, Portuguese, Turkish, Italian |
Power Requirements | AC 100V-240V, 50/60Hz |
Dimensions (W x D x H) | 25.5cm (10″) x 23cm (9″) x 33cm (13″) |
Weight | 6kg |
Parameters | Up to 15 parameters on one rotor, 32 parameters configured into profiles |
Reagent Disc | Disposable pre-packaged with self-contained lyophilised reagent |
Calibration | Automatic self-calibration by scanning QR Code on the aluminium foil pouch |
Quality Control | Liquid QC and built-in Realtime Quality Control (RQC) system |
Connection Interfaces | WLAN, USB, Ethernet interface, RS232 Serial Interface, compatible with HIS |
Print Mode | Built-in thermal printer |
Data Capacity | More than 50,000 sets of patient and quality control data |
Ordering Information | |
Product Code | Product Description |
WD1800 | InSight V-CHEM Veterinary Chemistry Analyser |
WD1801 | InSight V-CHEM General Health Panel (10) |
WD1802 | InSight V-CHEM Electrolytes Panel (10) |
WD1803 | InSight V-CHEM Liver & Renal Panel (10) |
WD1806 | InSight V-CHEM Preanaesthetic Panel (10) |
WD1807 | InSight V-CHEM Preanaesthetic Plus Panel (10) |
WD1808 | InSight V-CHEM Critical Care Panel (10) |
WD1809 | InSight V-CHEM Large Animal Diagnostic Panel (10) |
WD1811 | InSight V-CHEM Diabetes Panel (10) |
WD1813 | InSight V-CHEM Equine Panel (10) |
WD1814 | InSight V-CHEM Avian & Reptile Panel (10) |
WD1815 | InSight V-CHEM General Health Plus Panel (10) |
WD1816 | InSight V-CHEM Quad Test Panel |
WD1817 | InSight V-CHEM Chem 24 Panel (10) |
WD1448 | InSight 100µl Pipette |
WD1449 | InSight 20-200µl Pipette Tips (100) |
WD1210 | Printer Paper |
